GS-20

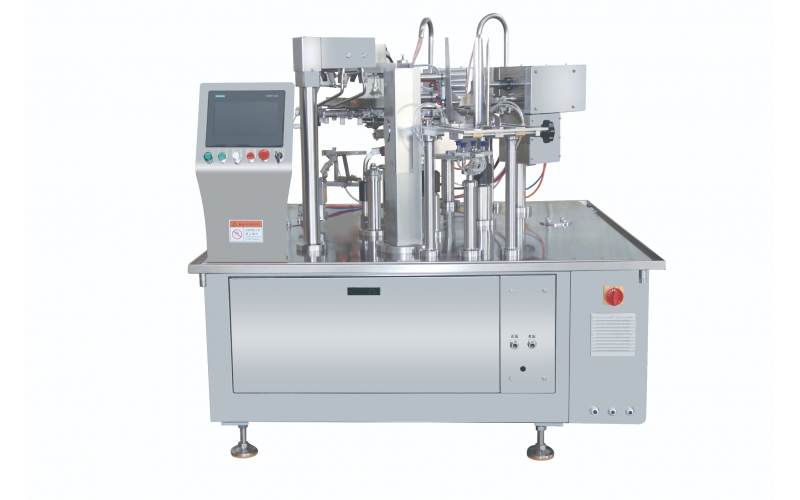

The GS-20 is a high-performance rotary premade pouch packaging machine engineered for efficiency, precision, and reliability in demanding production environments. Equipped with a multi-station rotary system, it automates the entire packaging process—from bag picking and opening to filling, sealing, and output—making it ideal for food, pharmaceutical, chemical, and hardware industries. Designed to handle a variety of pouch types and materials, this machine delivers consistent quality, reduces labor costs, and maximizes throughput for high-volume operations.
Key Features
High-Speed Automation: 10 synchronized stations enable packaging speeds of up to 50 bags per minute, boosting productivity and output.
Wide Material Compatibility: Handles composite films, PE, PP, and aluminum foil, supporting both flat pouches and three-side seal bags.
Fully Automated Process: Integrates bag picking, opening, filling, sealing, and discharging with minimal manual intervention.
Robust & Stable Construction: Heavy-duty build (2000 kg for GS-20) ensures durability, vibration resistance, and long-term reliability.
User-Friendly Operation: Intuitive controls and tool-free adjustments allow quick changeovers and reduce downtime.
Flexible Configuration: Optional attachments include computer combination scales, screw feeders, liquid/paste fillers, and conveyor systems.
| Model | GS-20 | GY-85-240 |
| Stations | 10 | 8 |
| Packaging Materials | Composite film, PE, PP, aluminum foil, etc. | Composite film, PE, PP, aluminum foil, etc. |
| Pouch Type | Flat bag, three-side seal bag | Flat bag, three-side seal bag |
| Pouch Size (W×L) | 85–160 mm × 120–360 mm | 100–240 mm × 120–360 mm |
| Speed | 15–50 bags/min (product-dependent) | 15–50 bags/min (product-dependent) |
| Dimensions (L×W×H) | 2100 × 2000 × 1700 mm | 1900 × 1650 × 1300 mm |
| Weight | 2000 kg | 1100 kg |
| Power | 3 KW | 3 KW |
| Voltage | 380V, 50Hz | 380V, 50Hz |
