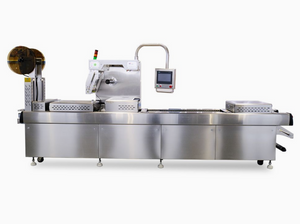

DZDL-520-572 Automatic Stretch Film Vacuum Packaging Machine

Share to:

DZDL-520-572 Automatic Stretch Film Vacuum Packaging Machine

The DZDL-520-572 is a high-performance intelligent vacuum packaging machine designed for the food, medical, and electronics industries. Built with food-grade 304 stainless steel and featuring an intuitive 10-inch touchscreen control interface, it combines robust construction with user-friendly operation. Equipped with a precision servo drive system, photoelectric tracking, and quick mold change technology, it achieves ≤0.5mm packaging accuracy and allows product changeover within 3 minutes, significantly improving production efficiency. Compliant with FDA hygiene standards, it is an ideal vacuum sealing solution for prepared meals, sterile medical devices, precision electronic components, and more.

Availability:

Quantity:



Inquire Add to Basket

Model:
DZDL-520-572

Product Description

Key Features

Intelligent Control System: Imported SIEMENS color touchscreen with push-pull design, easy operation, supports bilingual interface.

High-Precision Film Feeding: Utilizes Panasonic servo motors for high-speed, accurate film transport and positioning.

Quick Mold Change Design: Separate upper and lower molds enable easy loading/unloading, allowing product switch in under 3 minutes.

Premium Vacuum System: Optional German BUSCH, LEYBOLD, or RIETSCHLE vacuum pumps for fast pumping, high vacuum, and long lifespan.

Safety & Eco-Friendly: Integrated electrical protection systems, low-noise waste recycling, and easy maintenance.

Customizable Options: Configurable with coding devices, photoelectric sensors, vacuum pumps, and more to meet various industry needs.

Technical Specifications

Item	Specification
Model	DZDL-520-572
Power Supply	Three-phase 380V/50Hz
Vacuum Degree	≤200 Pa
Upper Film Width	496 mm
Lower Film Width	522 mm
Effective Working Size	484 mm × 572 mm
Packaging Speed	4–6 cycles/minute
Average Power Consumption	12–14 kW/hour
Machine Weight	1800–2200 kg

Applications

Suitable for vacuum or gas-flush packaging of meat products, soy products, pasta, seafood, fruits, vegetables, pickles, pharmaceuticals, hardware, medical instruments, and more.
