DZDL-420
The DZDL-420-440 Automatic Stretch Film Vacuum Packaging Machine is a state-of-the-art, intelligent packaging solution engineered for superior performance in demanding industries like food, medical, and electronics. Constructed with a hygienic, food-grade 304 stainless steel body and controlled via an intuitive 10-inch touchscreen, it masterfully blends industrial durability with operational simplicity. Its core precision is driven by an advanced servo system and photoelectric tracking, achieving exceptional packaging positioning accuracy of ≤0.5mm. Paired with a quick-mold-change design that allows for product switching in under 3 minutes, it significantly boosts your production line's efficiency and flexibility. Ideal for packaging prepared meals, sterile medical devices, and sensitive electronic components, this machine is built to comply with rigorous FDA sanitation standards. With added smart diagnostics, a low-noise waste recycling system, and customizable key components like vacuum pumps, the DZDL-420-440 delivers a reliable, clean, and adaptable packaging solution for your specific needs.

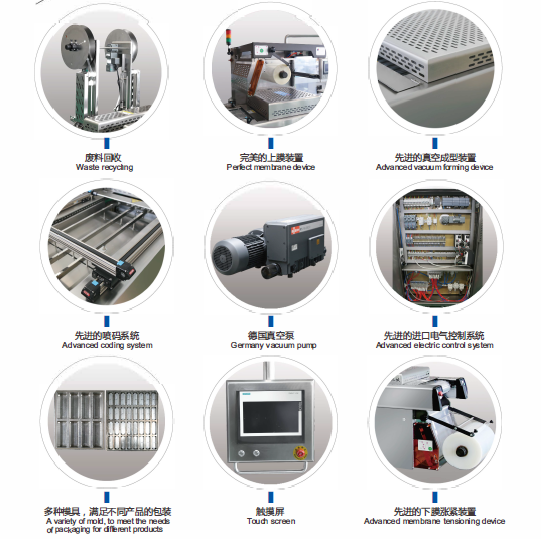

Machine Features
Equipped with imported SIEMENS color simulation touch screen. Push pull design makes operation more convenient.
According to user product requirements, an imported Panasonic brand servo controlled coding device can be equipped
The upper and lower separated mold has high strength, corrosion resistance, and a more reasonable design. Easy and fast loading and unloading.
Adopting independent cross cutting, the single blade can be moved and adjusted. Computer centralized control, single blade on/of can be selected on the touch screen.
Adopting imported Panasonic brand MDME102GCG and 152GCG for high-speed and high-precision film running design.
Technical Parameters
Model | DZDL-420-440 | ||
Power supply | Three-phase 380V/50Hz | Vacuum | ≤200pa |
Upper film width | 396mm | compressed air | 0.6-0.8mpa |
Lower film width | 422mm | Production capacity | 4-6times /min |
Working room effective size | 384mm x440mm | Dimensions(mm) | See drawing |
Total Weight | 1800-2200Kg | average power | 9kw-10kw/hour |
