DZDL-320
Product Introduction

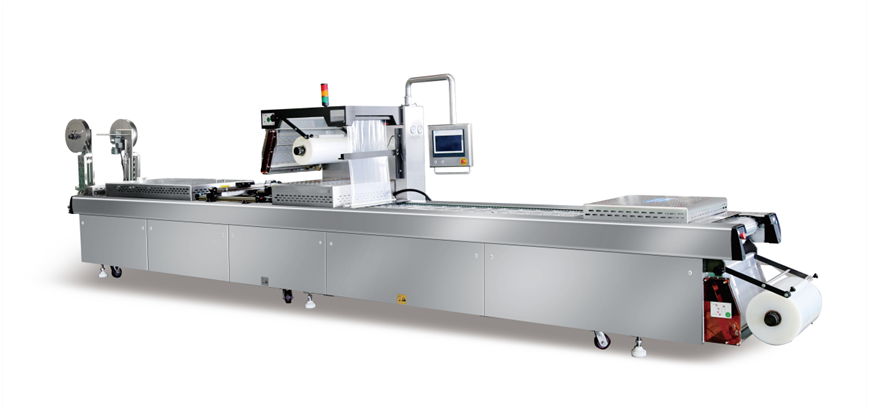

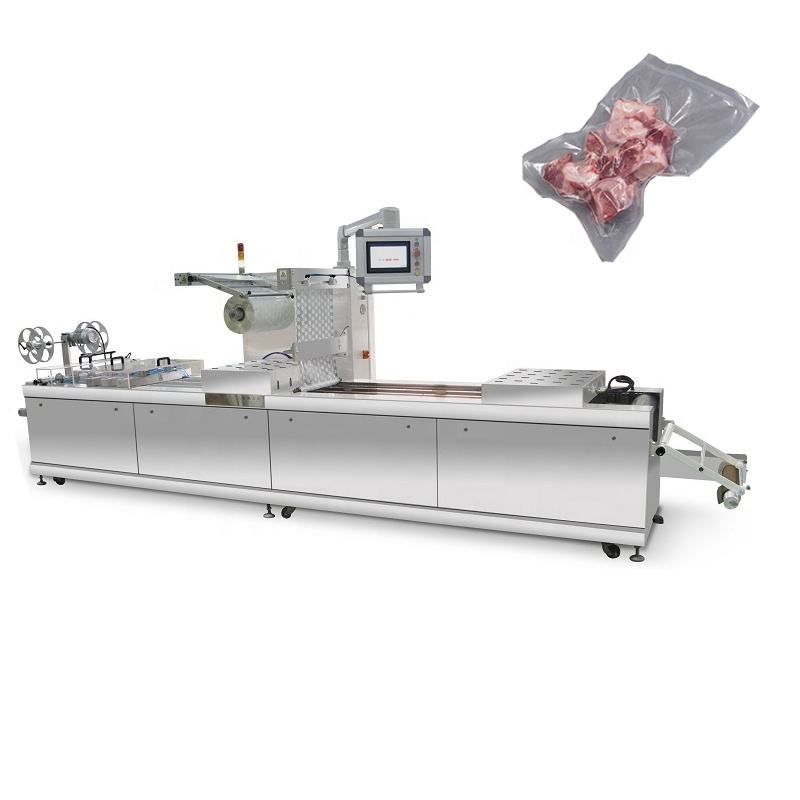

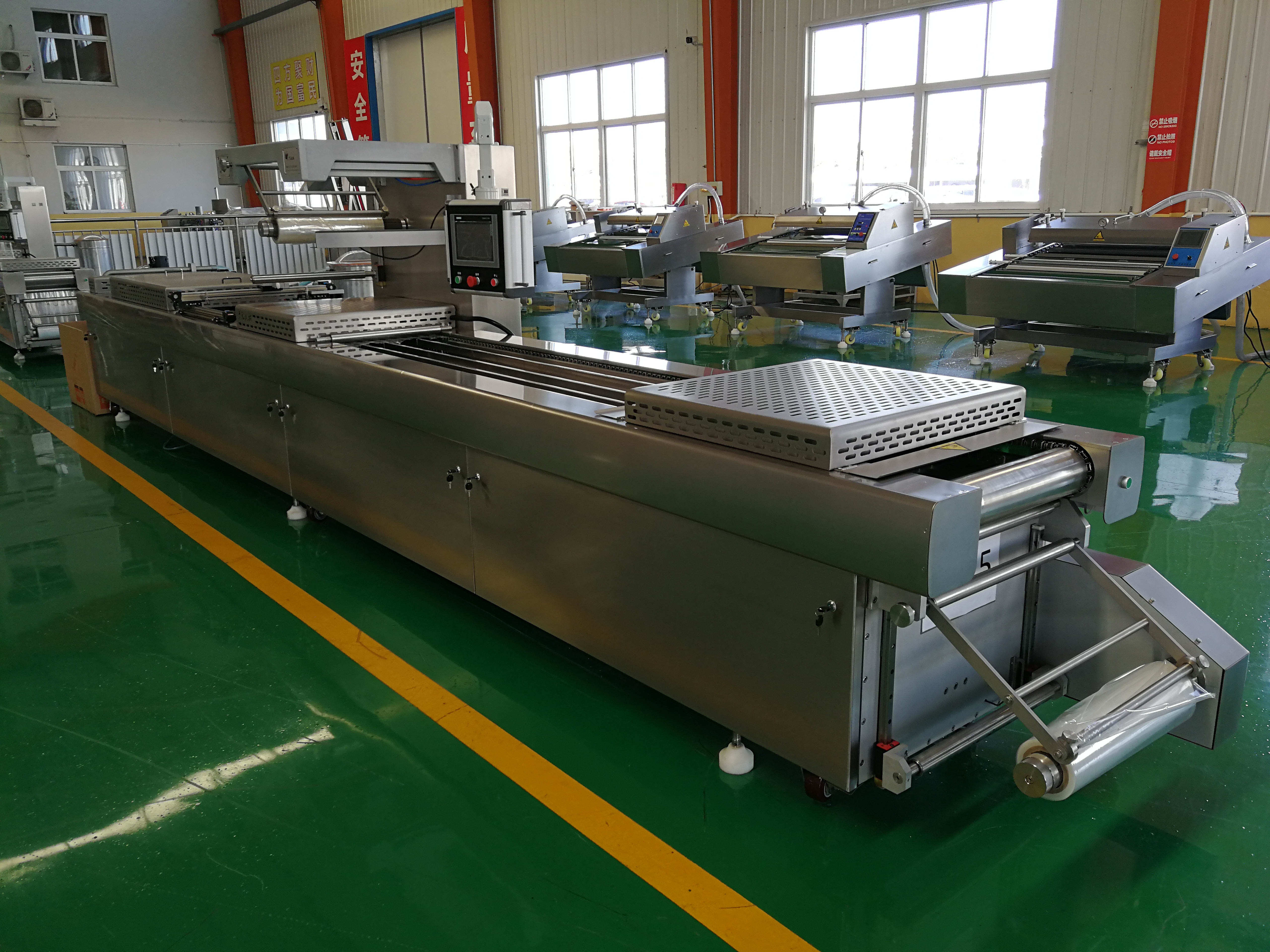

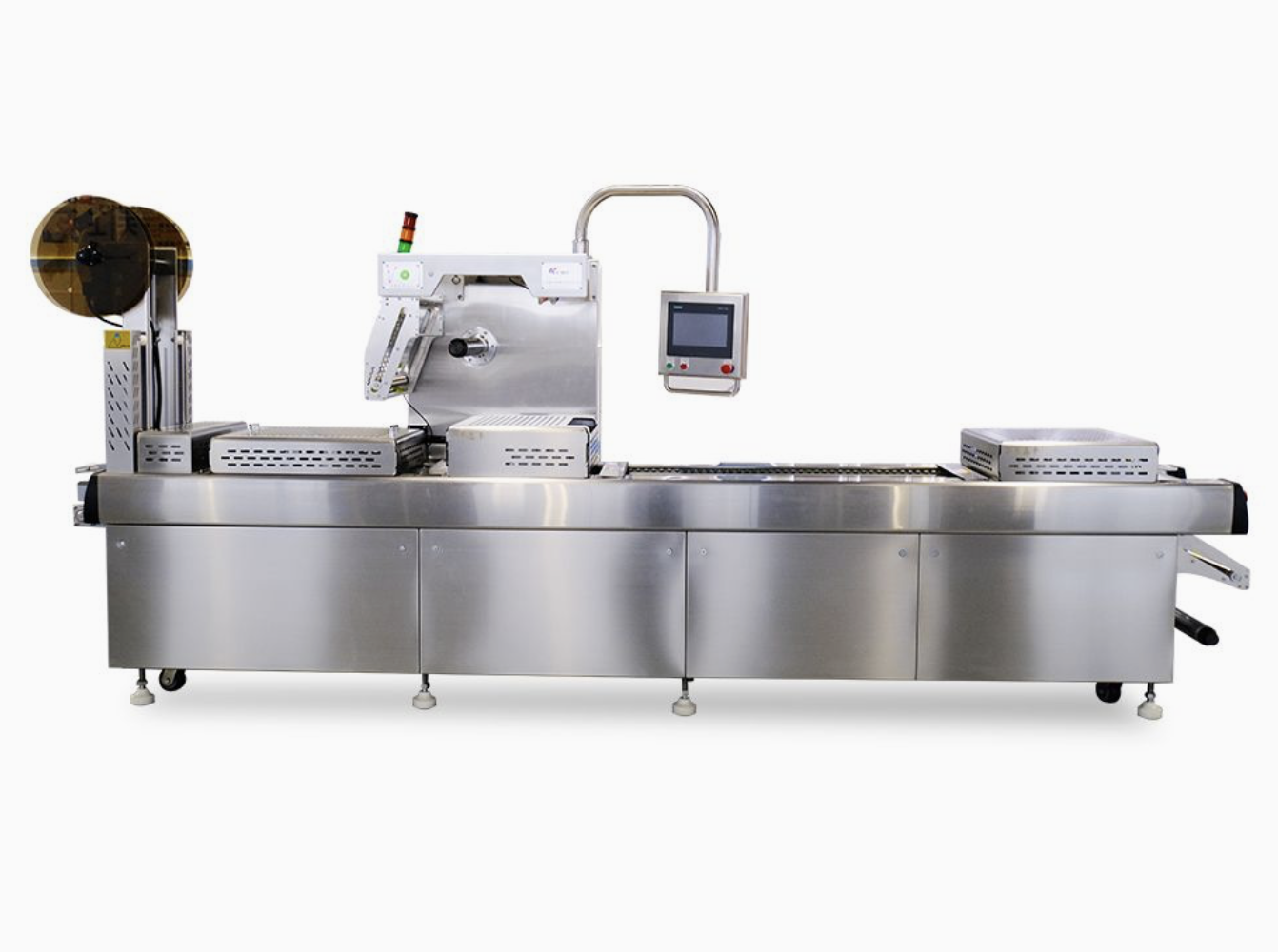

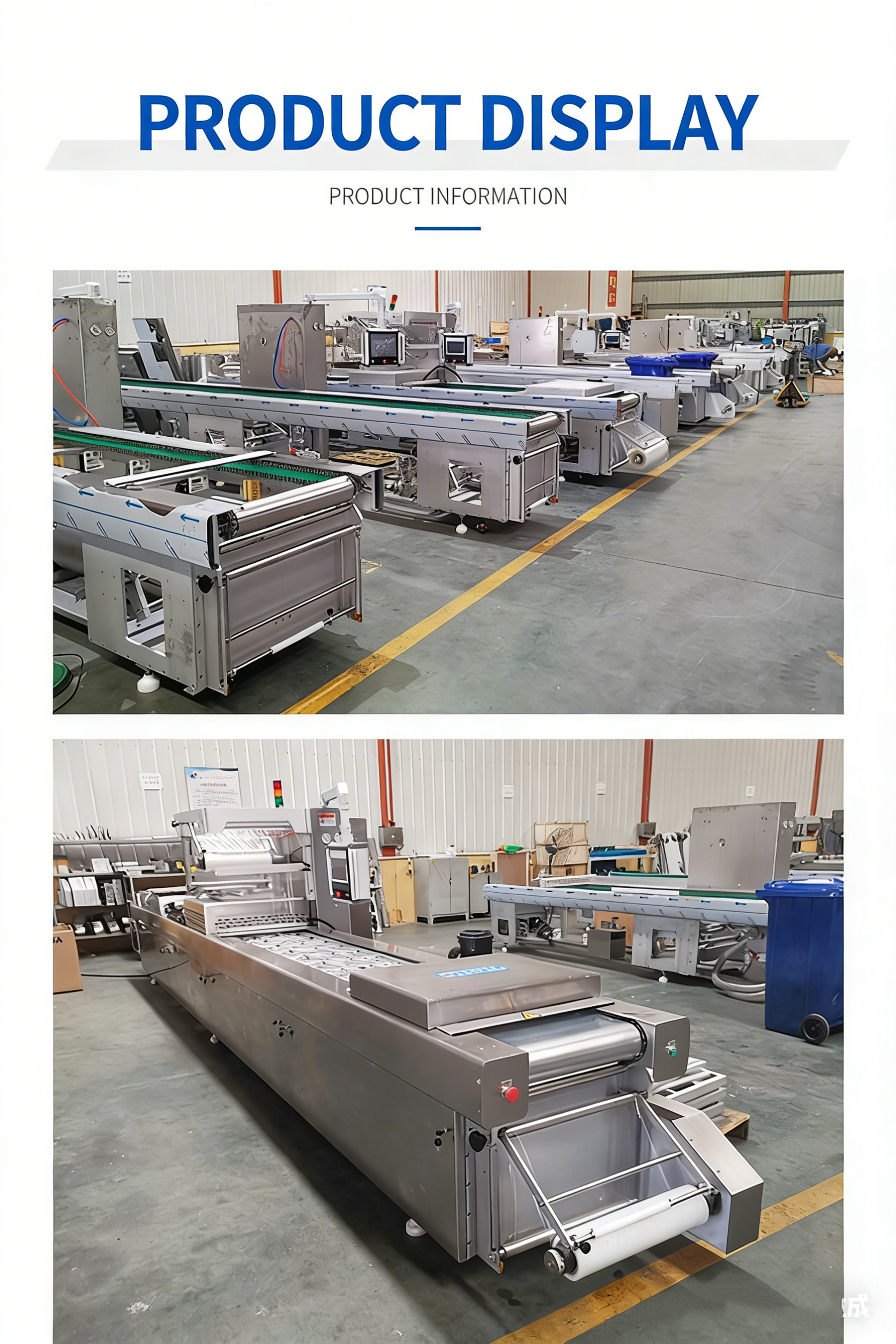

The DZDL-320 Automatic Stretch Film Vacuum Packaging Machine is an intelligent, high-efficiency packaging solution designed for demanding industries such as food, medical, and electronics. Built with a food-grade 304 stainless steel body and a user-friendly 10-inch touchscreen interface, it ensures durability and easy operation. Equipped with a precision servo drive system and photoelectric tracking technology, it achieves packaging accuracy within ≤0.5mm. The quick mold change feature allows product switching in under 3 minutes, significantly improving productivity. Compliant with FDA standards, it is ideal for vacuum sealing prepared meals, sterile medical devices, and sensitive electronic components. The machine also features smart fault diagnosis, a low-noise waste recycling system, and customizable vacuum pump options to meet varied production needs.
Key Features
1. Imported SIEMENS color touchscreen with push-pull design for convenient operation
2. Optional Panasonic servo-controlled coding device
3. High-strength, corrosion-resistant split mold design for easy loading and unloading
4.Independent cross-cutting system with adjustable single blade, controlled via touchscreen
5.Panasonic MDME102CCG/152CCG servo motors for high-speed, precise film feeding
6.HII or Italian REGINA wide-open chain film clamps for reliable grip and transmission
7.German BUSCH, LEYBOLD, or RIETSCHLE vacuum pumps for fast evacuation and high vacuum levels
8.American BANNER-R58 photoelectric sensor for precise pattern positioning
9.SMC solenoid valves for quiet, durable, and efficient performance
10.Integrated safety systems including phase failure, over/under voltage, and leakage protection
Technical Specifications
| Model | DZDL-320 |
|---|---|
| Power Supply | Three-phase 380V / 50Hz |
| Upper Film Width | 296 mm |
| Lower Film Width | 322 mm |
| Effective Working Area | 284 mm × 300 mm |
| Vacuum Level | ≤ 200 Pa |
| Compressed Air Requirement | 0.6 – 0.8 MPa |
| Production Capacity | 4 – 6 cycles/minute |
| Average Power Consumption | 6 – 7 kW/hour |
| Machine Weight | 1000 – 1200 kg |
| Dimensions (L×W×H) | 5500 × 800 × 1750 mm |

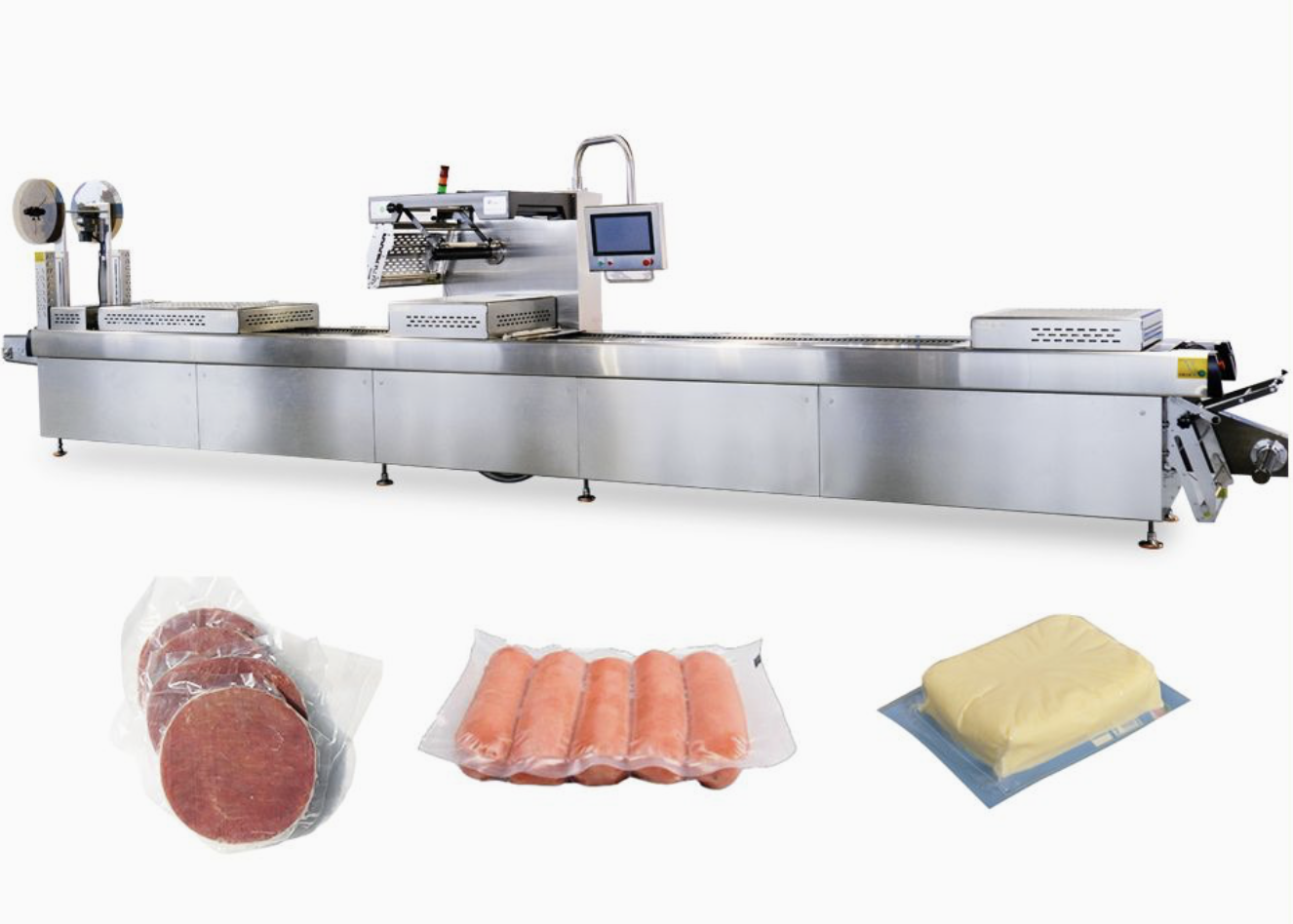

Applications
Suitable for vacuum and modified atmosphere packaging of:
Meat, seafood, soybean products, flour-based foods
Fruits, vegetables, pickles
Medical supplies, sterile devices
Electronic components, hardware, and instruments
| Model | DZDL-320 | DZDL-420 | DZDL-520 | DZDL-685 |
| Lower Film Width (mm) | 322 | 422 | 522 | 685 |
| Upper Film Width (mm) | 295 | 395 | 495 | 661 |
| Vacuum Level (Pa) | ≤200 | ≤200 | ≤200 | ≤200 |
| Power Supply (V/Hz) | 380/50 | 380/50 | 380/50 | 380/50 |
| Avg. Power (kW) | 7 | 10 | 12 | 16 |
| Dimensions (mm) | 5500×800×1750 | 6000×900×1750 | 7500×1000×1750 | 6500×1400×1800 |
| Weight (kg) | 1200 | 1800 | 2200 | 2400 |
| Speed (cycles/min) | 4–7 | 4–7 | 4–7 | 3–6 |
| Model | DZDL-320 | DZDL-420 | DZDL-520 | DZDL-685 |
|---|---|---|---|---|
| Lower Film Width (mm) | 322 | 422 | 522 | 685 |
| Upper Film Width (mm) | 295 | 395 | 495 | 661 |
| Vacuum Level (Pa) | ≤200 | ≤200 | ≤200 | ≤200 |
| Power Supply (V/Hz) | 380/50 | 380/50 | 380/50 | 380/50 |
| Avg. Power (kW) | 7 | 10 | 12 | 16 |
| Dimensions (mm) | 5500×800×1750 | 6000×900×1750 | 7500×1000×1750 | 6500×1400×1800 |
| Weight (kg) | 1200 | 1800 | 2200 | 2400 |
| Speed (cycles/min) | 4–7 | 4–7 | 4–7 | 3–6 |
