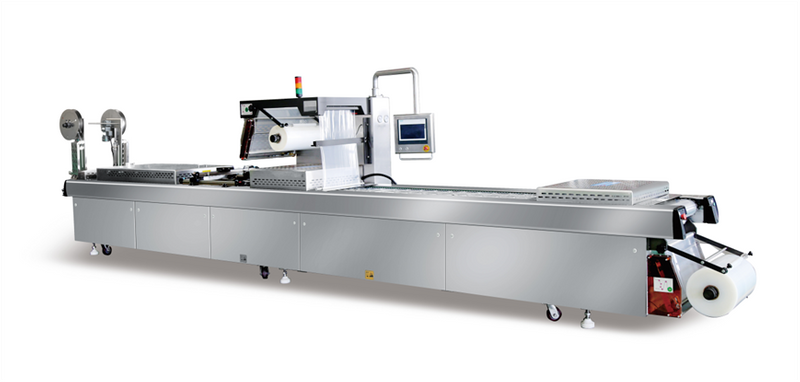

The DZDL-685-610 is a state-of-the-art, fully automatic stretch film vacuum packaging machine engineered for unparalleled efficiency and reliability in demanding packaging environments. Designed to meet the stringent hygiene and precision standards of the food, medical, and electronics industries, this machine integrates robust construction with intelligent automation.
| Quantity: | |
|---|---|
DZDL-685-610
High Precision & Efficiency: Achieves exceptional packaging alignment with ≤0.5mm accuracy using Panasonic servo motors and Banner photoelectric sensors. Features a quick-change mold system, allowing for product line switches in under 3 minutes, maximizing uptime and productivity (4-6 cycles/minute).
Intelligent & User-Friendly Operation: Centralized control is managed through an intuitive, pull-out 10-inch Siemens color touchscreen. Operators can easily adjust parameters, select functions, and monitor the process. The system includes smart fault diagnosis with clear display alerts.
Robust & Hygienic Design: Built with food-grade 304 stainless steel and anodized aluminum alloy main beam for superior strength, corrosion resistance, and easy cleaning, fully complying with FDA sanitary standards.
Premium Core Components: Equipped with high-performance German Busch/Leybold/Rietschle vacuum pumps for fast pumping speed and high ultimate vacuum (≤200Pa). Utilizes Japanese SMC valves and REGINA/HH chain clamps for reliable, low-noise, and durable operation.
Enhanced Safety & Convenience: Comprehensive protection system includes phase failure, voltage anomaly, and leakage protection. All critical areas have safety switches and guards. Features a low-noise integrated scrap recycling system for a cleaner workspace.
Technical Specifications
| Parameter | Specification |
| Model | DZDL-685-610 |
| Power Supply | Three-phase 380V / 50Hz |
| Average Power | 14 kW/hour |
| Effective Work Area | 649mm x 610mm |
| Upper Film Width | 661mm |
| Lower Film Width | 690mm |
| Vacuum Degree | ≤ 200 Pa |
| Compressed Air | 0.6 - 0.8 MPa |
| Production Capacity | 4-6 cycles / minute |
| Dimensions (LxWxH) | Approx. 7000 x 1200 x 2100 mm |
| Net Weight | Approx. 2190 Kg |
Applications
This versatile packaging machine is perfectly suited for vacuum and modified atmosphere packaging (MAP) of a wide range of products:
Food Industry: Prepared meals/ready-to-eat food, meat products, seafood, cheeses, dried fruits, vegetables, pickles, noodles, tofu, and baked goods.
Medical & Pharmaceutical: Sterile medical devices, surgical kits, and pharmaceutical products requiring barrier protection.
Electronics & Industrial: Precision electronic components, hardware, tools, and sensitive instruments.
Other models
| DZXL-420 | DZDL-320 | DZDL-420 | DZDL-520 | DZDL-685 | |
Effective Sealing Size | 422*396mm | 322*295mm | 422*395mm | 522*495mm | 685*661mm |
| vacuum degree | ≤200Pa | ≤200Pa | ≤200Pa | ≤200Pa | ≤200Pa |
| Compressed air | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa |
| Cooling wate | ≥0.1Mpa | ≥0.15Mpa | ≥0.15Mpa | ≥0.15Mpa | ≥0.15Mpa |
| Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Packing Speed（Every Minute） | 4-6times/min | 4-7times/min | 4-7times/min | 4-7times/min | 3-6times/min |
| Toal powert | 14kw | 7kw | 10kw | 12kw | 16kw |
| Raw materials | 304stainless | 304 stainless | 304 stainless | 304 stainless | 304 stainless |
| Weight | 950kg | 1200kg | 1800kg | 2200kg | 2400kg |
| Dimensions | 7500*1000*1750mm | 4500*800*1750mm | 5500*900*1750mm | 7500*1000*1750mm | 6500*1400*1800mm |
