Key Features & Performance

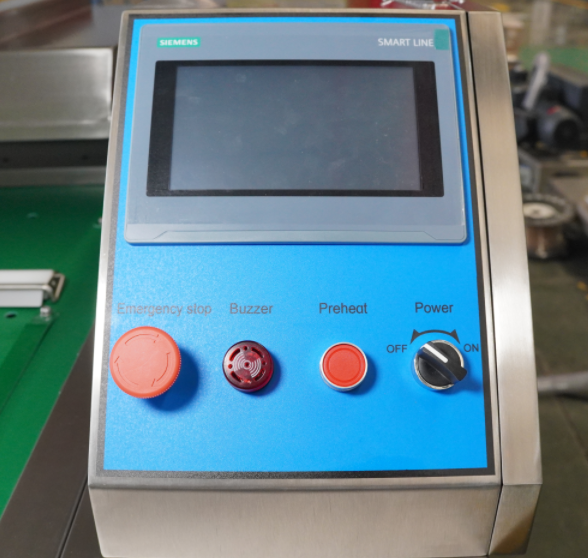

Intelligent Touchscreen Control
A user-friendly computer touchscreen provides intuitive control. All parameters are set and adjusted visually, simplifying operation and enabling efficient, error-free human-machine interaction for quick changeovers.
Versatile & Hygienic Tilt Design
The entire machine tilts to five preset angles, achieving a 0-30° sealing range for optimal bag presentation. The fully sealed operating system is IP-rated, allowing the complete unit to be safely and thoroughly cleaned with water for strict hygiene compliance.
Safety & Precision Engineering
Equipped with safety light curtains for reliable operator protection. The system is driven by dual Panasonic servo motors and drives, ensuring precise conveyor belt control with soft start/stop, resulting in stable positioning and perfectly accurate seals every time.
Premium Core Components for Reliability
Powered by a high-performance German BUSCH vacuum pump for fast, stable, and corrosion-resistant evacuation. It features custom large-diameter pure copper solenoid valves, improving cycle efficiency by ~2 seconds. An upgraded heating strip with auto-tensioning drastically reduces breakage and lowers maintenance costs.
Proactive Monitoring & Efficient Operation
A heating strip breakage alarm provides immediate audio and visual fault alerts for quick maintenance. Designed for low labor intensity, it supports efficient single-operator use and seamless integration into continuous production lines.
Technical Specifications
Parameter | Specification |
Model | DZD-1100-550-F |
Power Supply | 380V / 50Hz / Three Phase / 7KW |
Vacuum Chamber Size (L×W×H) | 1225 × 550 × 106 mm |
Effective Seal Dimensions | 1100 × 8 mm (Length × Width) |
Working Speed (Cycles/Min) | 3 - 5 (Product Dependent) |
Machine Dimensions (L×W×H) | 1940 × 1620 × 1430 mm |
Applications
Meat products:
pork, beef, steak, meatloaf, hamburger, lion, ribs, venison, sausage, ham, bacon, meatballs, grill, bacon, minced meat
Poultry products:
whole chicken, chicken breast, duck, eggs, chicken wings, chicken legs, quail Fish and seafood products: fish fillets, mackerel, farmed fish, salmon, tuna, fish balls, shrimp, lobster tail, oysters, octopus, mussels
Dairy:
Cheese blocks, cheese blocks, cheese blocks
Vegetables and fruits:
Frozen durian, frozen potatoes, frozen carrots, bamboo shoots, asparagus, lettuce, olives, pickles
The machine is also an ideal equipment for vacuum packaging of non-food products, such as medical devices, laboratory equipment, auto parts, high-precision machine parts, etc., providing a safe, dry, hygienic and rust-proof storage environment for these products.
