GSK-2416-1012
Product introduction：

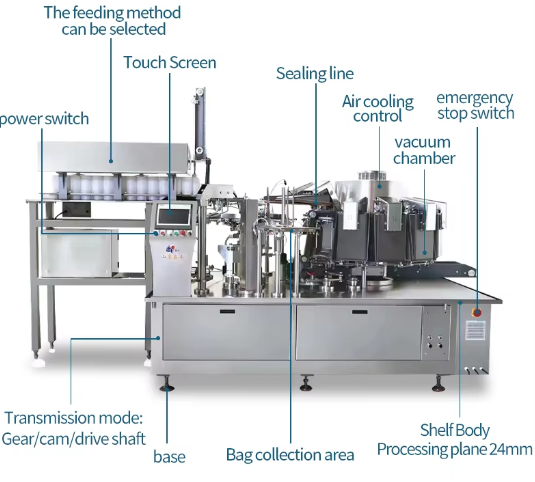

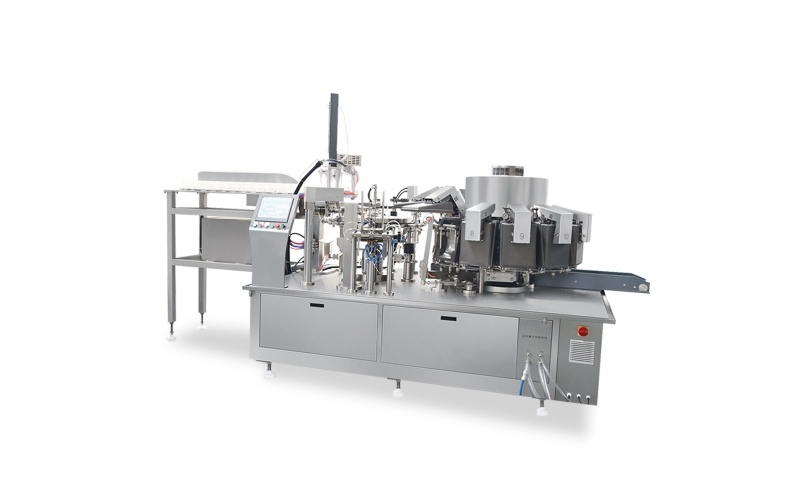

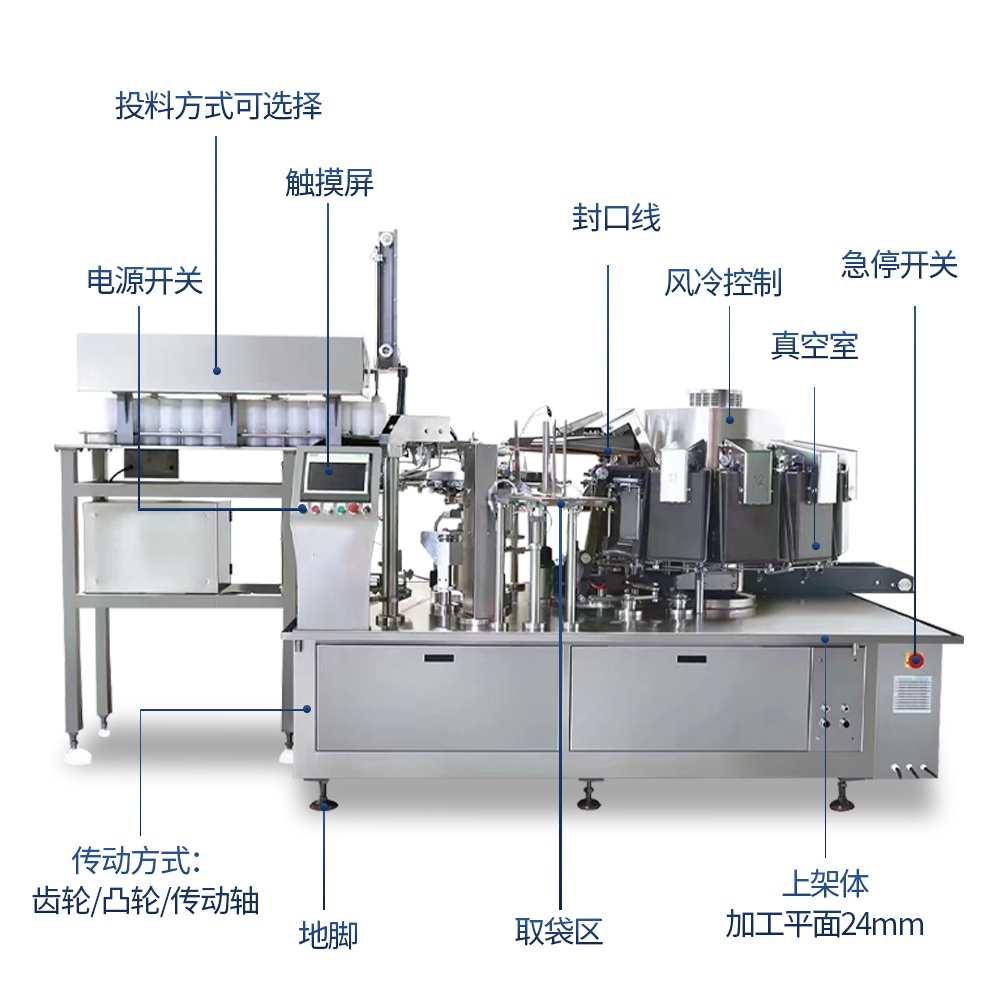

The GSK-2416-1012(ZONGZ1) continuous rotary vacuum packaging machine is capable of using a robotic arm to automatically pick bags, open them, print production dates and batch numbers, feed materials, and perform vacuum packaging, achieving fully unmanned operation and automated packaging. The bag size range is 100-260 mm in length and 60-200 mm in width, with a packaging efficiency of 2,000-2,600 bags per hour. Suitable for long bar, round bar and other snack food, such as four-cornered zongzi, corn cob, chicken feet，duck neck, etc., can also be used for all kinds of materials that are not easy to automatically measure, such as fish fillet, chicken gizzard，beef pieces, beef strips, etc., also meet such as brine eggs, quail eggs and other materials, as long as the replacement. The mold can realize the delivery of a variety of materials.
Key Features：
X-SQC Super Speed Cooling Technology – Advanced sealing technology that eliminates water-cooling limitations, ensuring safe, stable, efficient, and leak-free performance.
Robust & Stable Construction – Heavy-duty frame weighing over 4.5 tons for vibration-free and reliable operation.
Full Mechanical Linkage Drive – Digitally designed cam curves provide precise motion control without need for grinding or adjustment. Self-circulating oil lubrication extends equipment life.
Independent Vacuum Chamber Control – Each chamber operates independently, allowing continuous production even if one chamber encounters an issue.
Self-Priming Mechanical Seal Valve – Large-passage, high-speed vacuum valve with self-lubricating technology for enhanced efficiency.
QSC Pneumatic Speed Compensation System – Eliminates pneumatic delay, ensuring consistent and responsive operation.
Comprehensive Monitoring System – Includes detection for bag opening, material presence, heating strip status, low oil, motor failure, vacuum pump issues, lid position, vacuum levels, and communication errors.
| Parameter | Specification |
Machine Model | GSK-2416-1012(ZONGZ1) |
Bag Type | Flat Bag, Three-Side Seal Bag |
Bag Size Range | Width: 110–160 mm |
Packaging Speed | 40–70 bags/minute (varies with product & weight) |
Machine Dimensions | 4600 × 2300 × 2500 mm (configurable) |
Machine Weight | Approx. 4.5 tons (configurable) |
Air Consumption | 0.6 m³/min |
Main Power | 4.5 kW (vacuum pump not included) |
Automation Level | Fully Automatic (robotic bag pick & place) |
Suitable Products | Zongzi, corn cobs, chicken feet, duck neck, fish fillets, beef pieces, eggs, and more |
This versatile packaging machine is perfect for:
Snack Foods: Zongzi, corn sticks, chicken claws, duck necks
Meat & Seafood: Sliced fish, chicken gizzards, beef chunks, beef strips
Egg Products: Brine eggs, quail eggs
Other Irregular Items – By simply changing molds, the machine adapts to various shapes and sizes.
