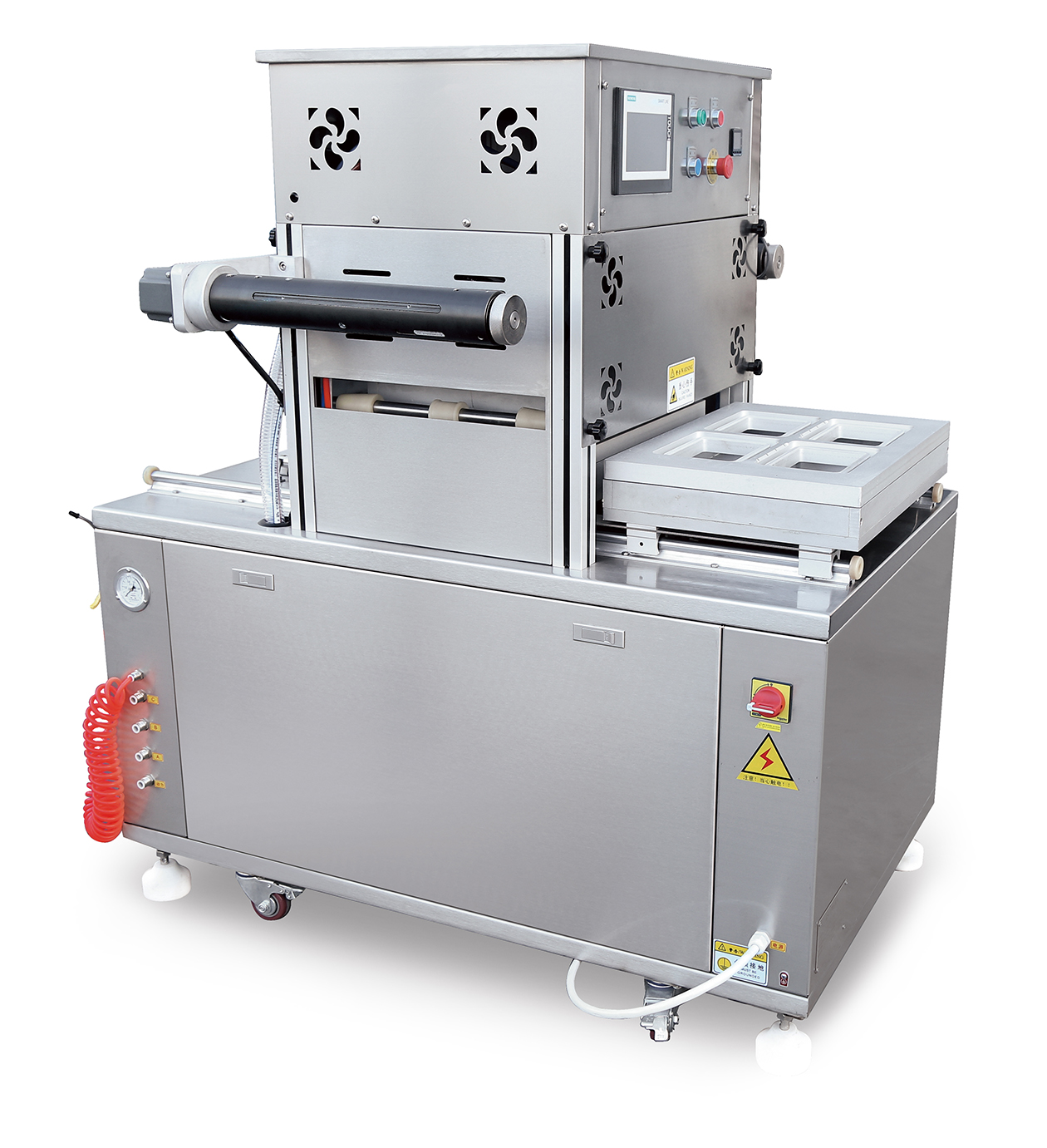

Product Introduction
Our Semi-Automatic Modified Atmosphere Packaging (MAP) and Skin Machine is engineered to extend the shelf life and enhance the presentation of fresh food products. Utilizing advanced gas-flushing technology and user-friendly controls, this machine is the perfect solution for businesses in food processing, retail, catering, and agriculture seeking reliable, high-quality packaging.
Designed for versatile applications, it excels in packaging a wide range of products including fresh vegetables, fruits, cold & cooked meats, fast food items, prepared meals, and soy products. Whether you need gas-flush preservation for
tray-packed goods or vacuum-skin packaging for superior product presentation, this machine delivers consistent, professional results.
Key Features & Benefits
Automated Gas Flushing & Mixing: Automatically mixes and injects precise ratios of preservative gases (CO₂, N₂, O₂) to displace oxygen within the package, significantly slowing spoilage and maintaining product freshness, color, and texture.
Dual Packaging Capabilities: Efficiently handles both Modified Atmosphere Packaging and vacuum Skin Packaging with a single machine, offering flexibility for different product types and market requirements.
Intelligent PLC Control System: Features a programmable logic controller (PLC) paired with a simple touch screen interface. Easily set, modify, and monitor all parameters (gas exchange cycles, temperature, timing) for reliable, low-maintenance operation and high packaging yield.
High-Precision Operation: Ensures gas displacement accuracy ≥99% and superior gas mixing precision (±1.5%), guaranteeing optimal atmospheric conditions inside every package for maximum shelf life.

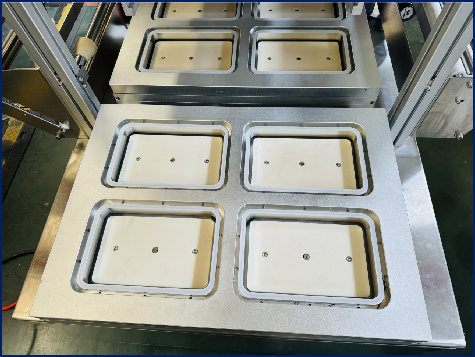

Material & Mold Flexibility: Compatible with various packaging films, including composite, standard, and anti-fog materials. Customizable molds are available to fit your specific tray or box dimensions perfectly.
Robust Construction & Efficient Output: Built with a sturdy 120-channel steel frame for durability. Delivers consistent output of 3-4 packs/minute for MAP and 2.5-3 packs/minute for skin packaging, enhancing your production line efficiency.
Technical Specifications
Model | 410G2 -Q | 460G2-Q | 490G2-Q |
Width of film | ≤ 410 | ≤ 460 | ≤ 490 |
Compressed Air | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
Average Power | 3.5kw/hour | 3.5kw/hour | 3.5kw/hour |
Effective size of workroom | 580mmX410mm | 640mmX460mm | 640mmX490mm |
Machine Weight | 450kg | 480kg | 500kg |
Power Supply | AC380Voptional ／50Hz 10A | AC380Voptional ／50Hz 10A | AC380Voptional ／50Hz 10A |
Yield | 3–4 cycles/min (MAP)
2.5–3 | 3–4 cycles/min (MAP)
2.5–3 | 3–4 cycles/min (MAP)
2.5–3 |
Gas displacement accuracy | ≥99% | ≥99% | ≥99% |
Gas mixing accuracy | Better than ±1.5% | Better than ±1.5% | Better than ±1.5% |
