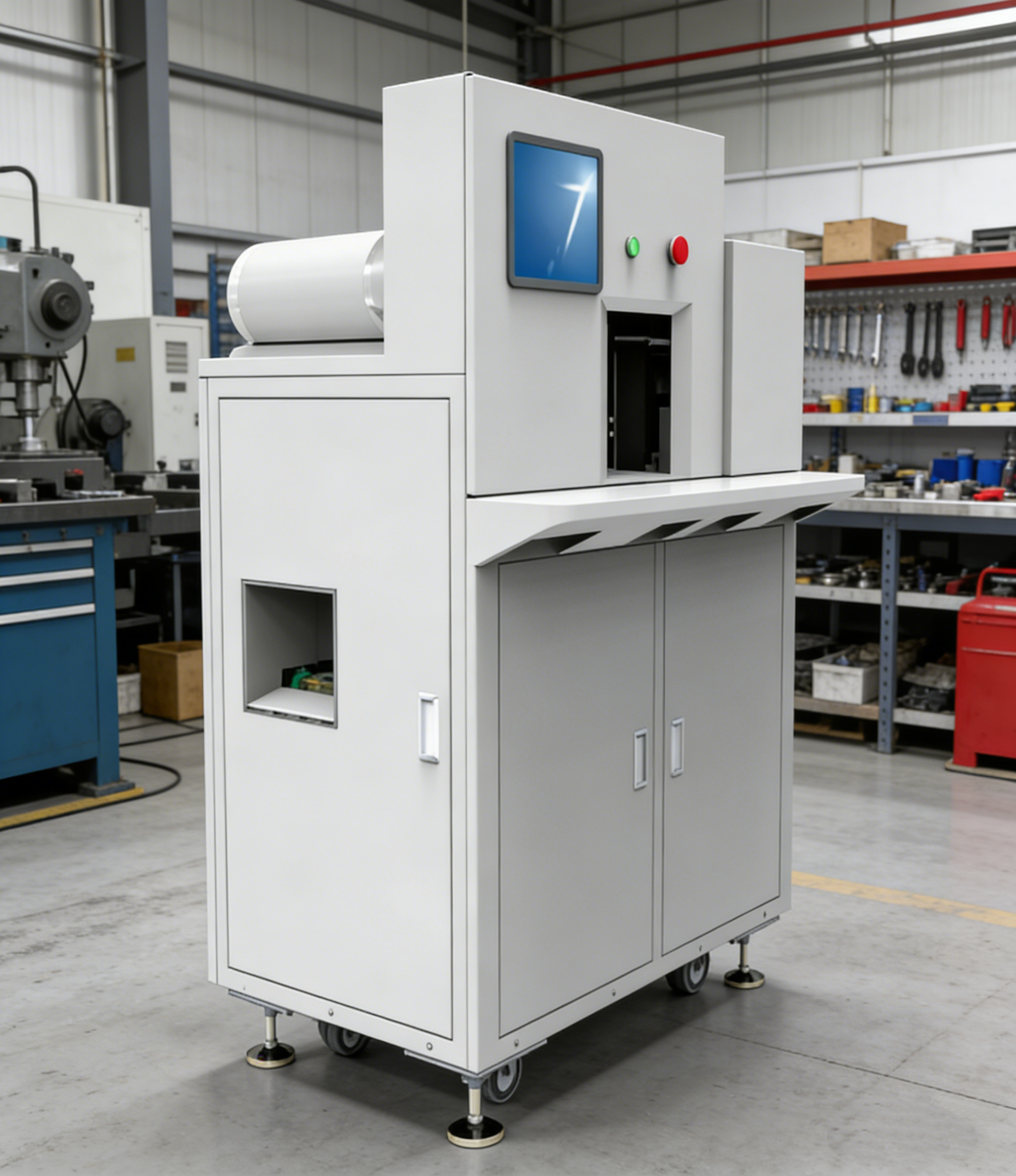

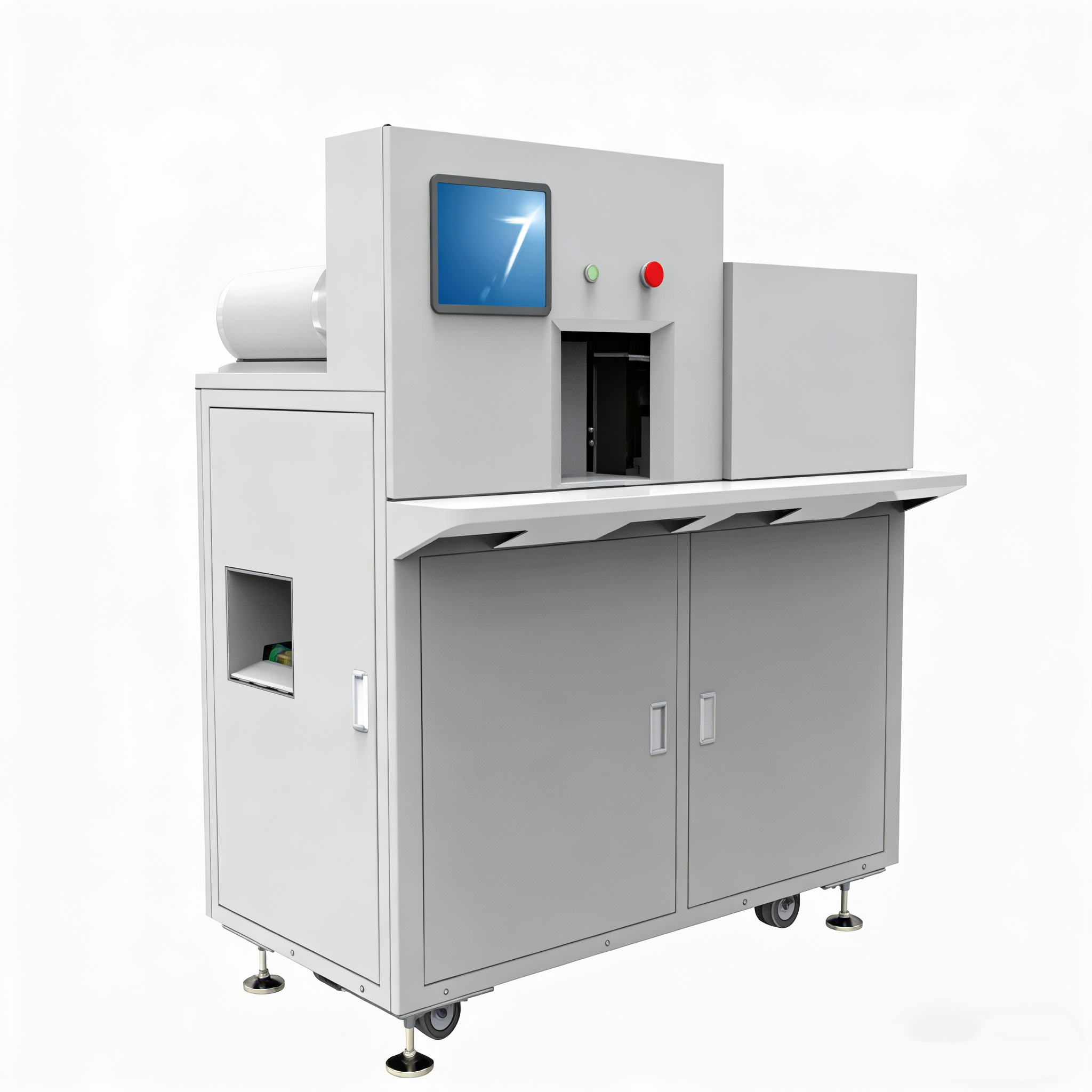

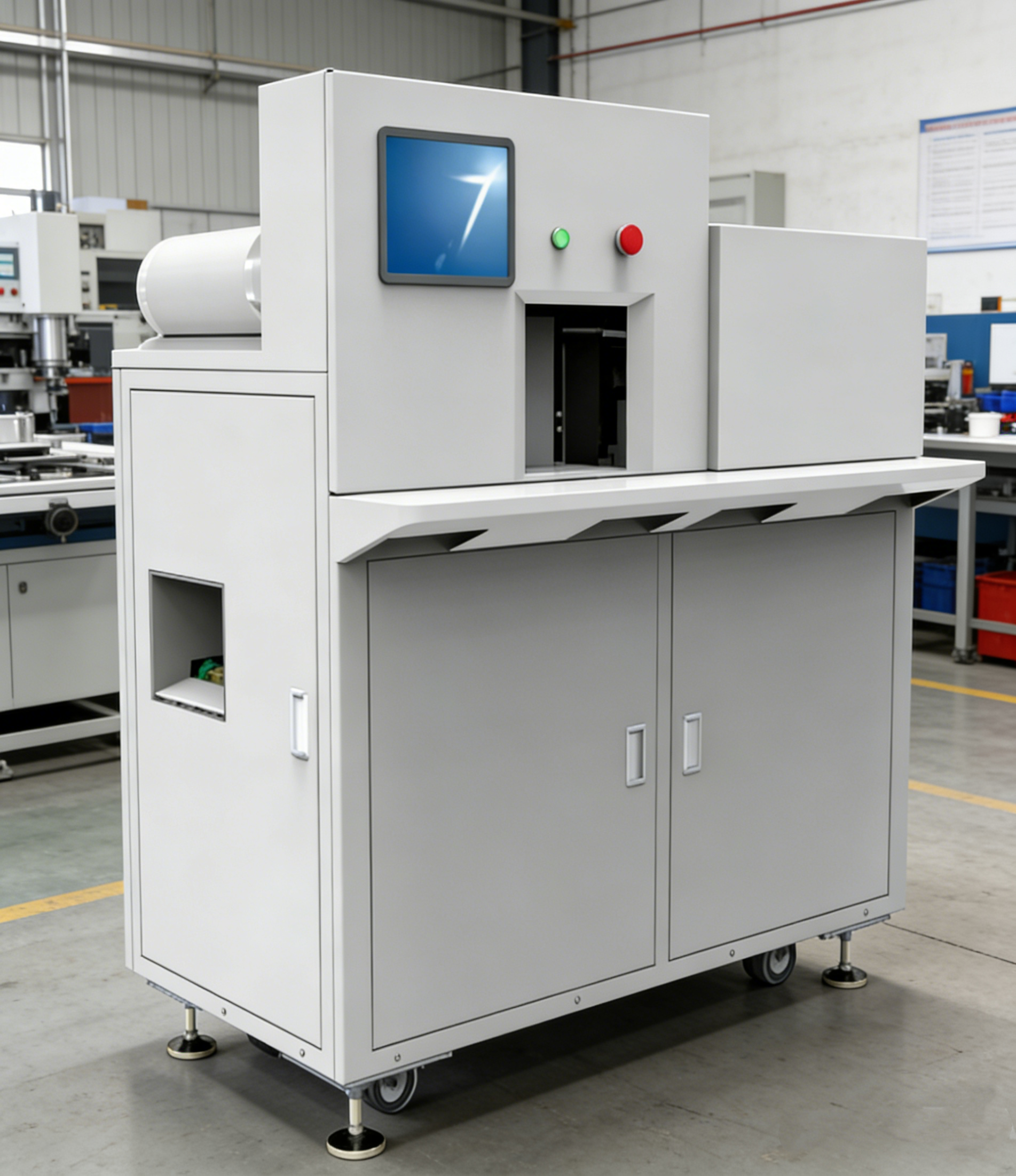

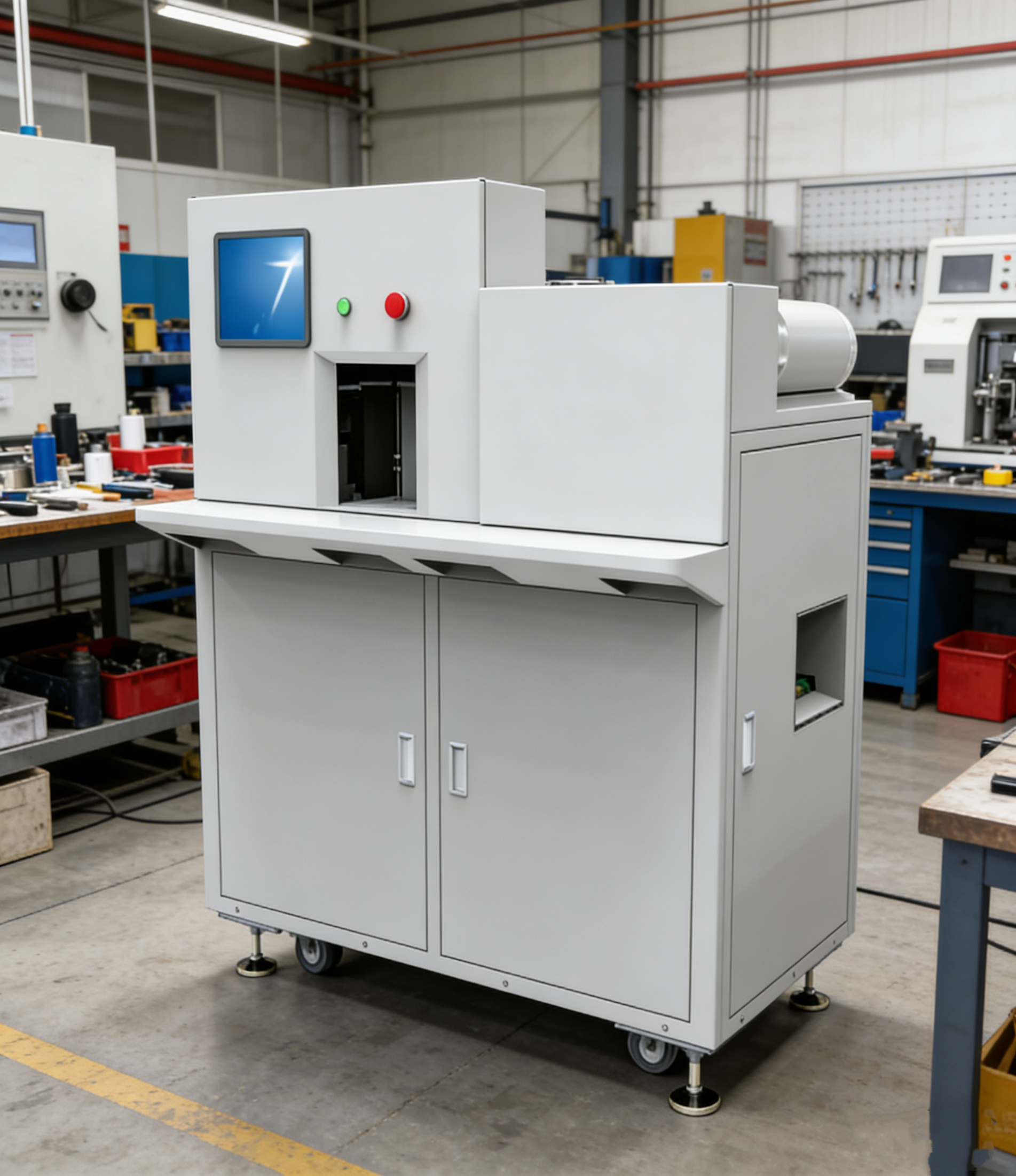

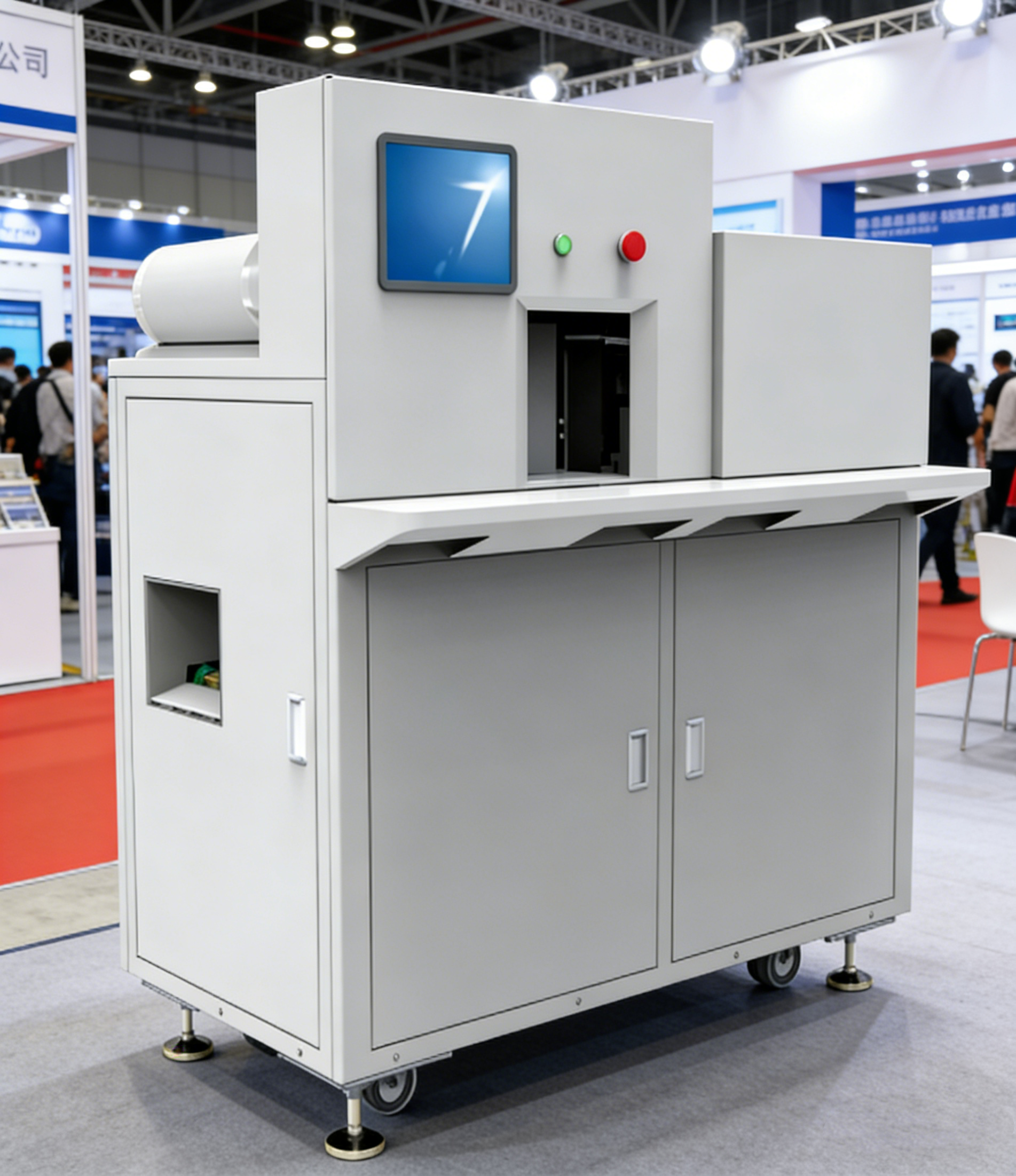

TR-400S Fully Automatic Banknote Shrink Wrapping Machine

The Zeneffic TR-400S fully automatic banknote shrink wrapping machine effectively resolves security challenges during banknote storage, transportation, and circulation. It prevents mildew and moisture damage during storage,physical damage and note extraction in transit, and manual seal tampering.
During the shrink wrapping process, tamper evident seals and barcodes are automatically generated via thermal transfer printing inside the film clear, wear proof, and fully traceable.The finished currency bundles have perfectly flat eight corners and tight film encapsulation.
Equipped with a PID intelligent temperature control system, it ensures energy‑ efficient operation.The large touch screen,external film rolls, and open design make operation,maintenance, and future upgrades simple and convenient.
Availability:
Quantity:
  • TR-400S

  • Zeneffic

Full Automatic Banknote Shrink Wrapping Machine

Performance Features

  • Ergonomic design, moderate size, suitable for both standing and sitting operation

  • Safety intelligent system, precise temperature control, more energy-saving and environmentally friendly

  • LCD touch screen operation, fault prompt, safer operation

  • External film roll mechanism, quick and easy consumable replacement

  • Pre-wrapping and sealing with Hanxin code/barcode, traceable for errors

  • Reserved space for future upgrades, easy information management expansion

  • Thermal transfer sealing, inner film printing, no wear during transportation

  • Open design for easy maintenance and repair



Technical Parameters

Applicable Currency: 4th and 5th series RMB, 0.1–100 yuan denominations

Packing Unit: 1,000 notes/bundle

Packing Efficiency: 200 bundles/hour

Working Noise: ≤70 dB

Working Power: Average power <2 kW, instantaneous max power <3 kW

Power Supply: AC220V±10% / 50Hz

Dimensions(L×W×H): 1297 × 673 × 1391 mm (width at table surface: 818 mm,

removable)

Net Weight: 350 kg


Consumable Specifications


Pre-wrap Film: Material: PE, Width: 75mm, Thickness: 0.05–0.08mm

Shrink Film: Material: POF, Width: 340mm, Thickness: 0.019–0.04mm

Carbon Ribbon: Width: 55mm
