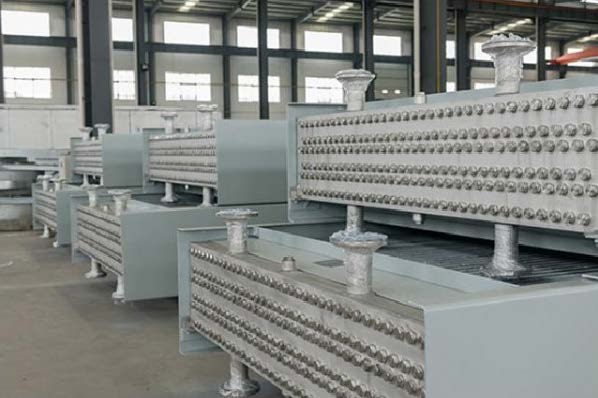

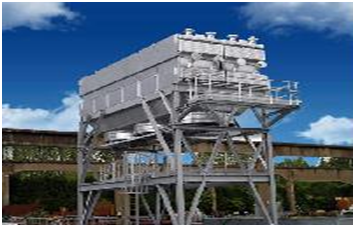

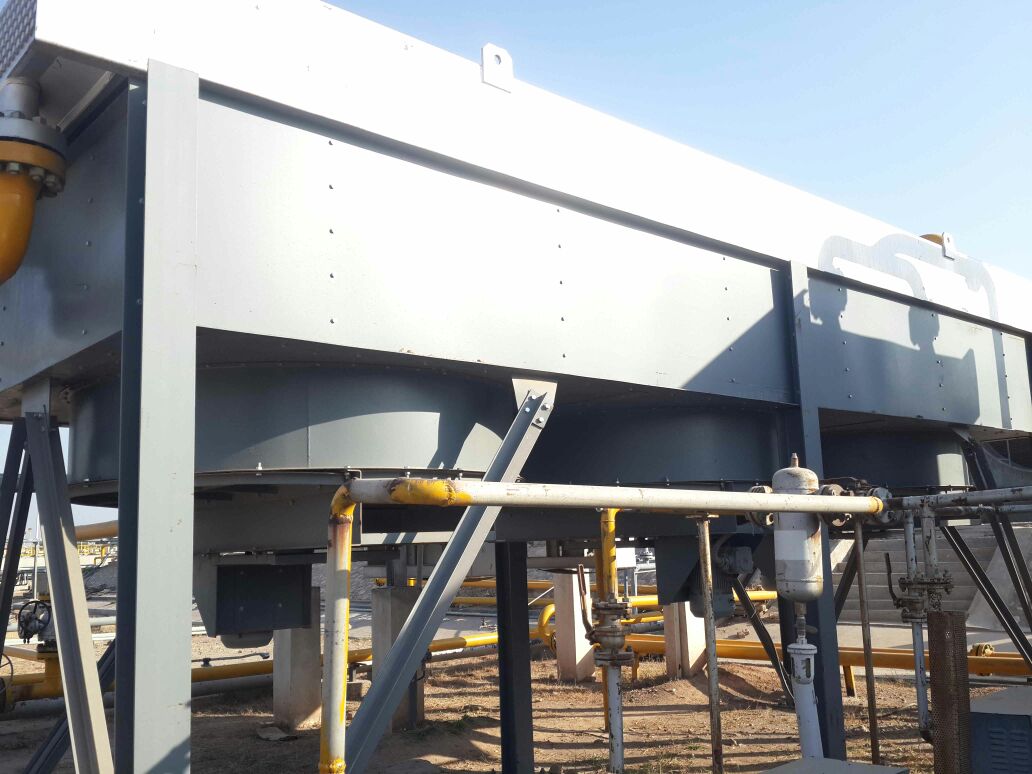

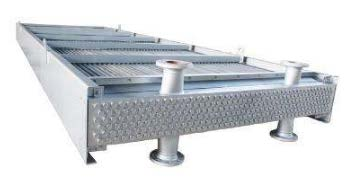

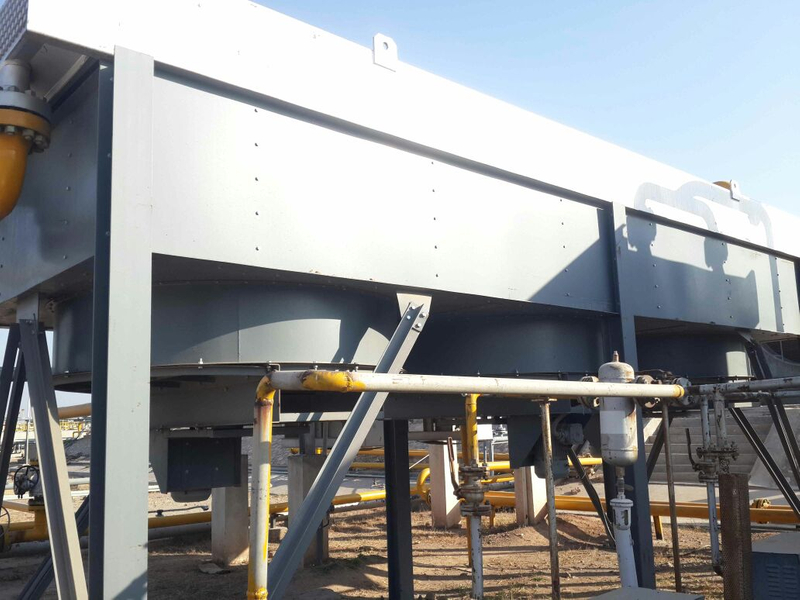

A horizontal air cooler is an industrial cooling device that uses air as the cooling medium and performs heat exchange through horizontally arranged finned tube bundles with forced/natural convection. Its core structure consists of horizontally arranged tube bundles, a fan system, a frame, and shutters. Driven by the fan, air flows transversely across the surface of the tube bundles, efficiently dissipating heat from the process fluid inside the tubes, thus achieving closed-circuit cooling without water consumption.
| Quantity: | |
|---|---|
Product Advantages
High Efficiency and Energy Savings
Adopts a high fin-ratio tube bundle design, increasing the heat exchange area by over 40%. Combined with an inverter-driven fan for intelligent temperature regulation, the overall energy consumption is 25%-35% lower than traditional water-cooled systems.
The horizontal layout reduces air flow resistance, lowering the power demand of the fan.
Strong Environmental Adaptability
Modular design supports flexible configuration for multiple working conditions, adapting to ambient temperatures ranging from -40°C to 50°C. It is particularly suitable for arid, water-scarce,or frigid regions.
Optional dust-proof and anti-corrosion coating technology extends equipment lifespan, meeting the needs of high-corrosion scenarios such as chemical plants and offshore platforms.
Easy Maintenance
Horizontal tube bundles are arranged in layers with clear maintenance channels, allowing single-module disassembly and maintenance, reducing downtime by 60%.
Eliminates the need for a cooling water circulation system, completely avoiding issues such as scale blockage, freezing, and biological contamination.
Low-Carbon and Environmental Friendliness
Zero water consumption and no wastewater discharge,aligning with global trends in industrial water conservation and carbon emission reduction.
Noise is controlled at ≤75dB(A), complying with the ISO 3744 environmental standard.
