TR-B101
Zeneffic

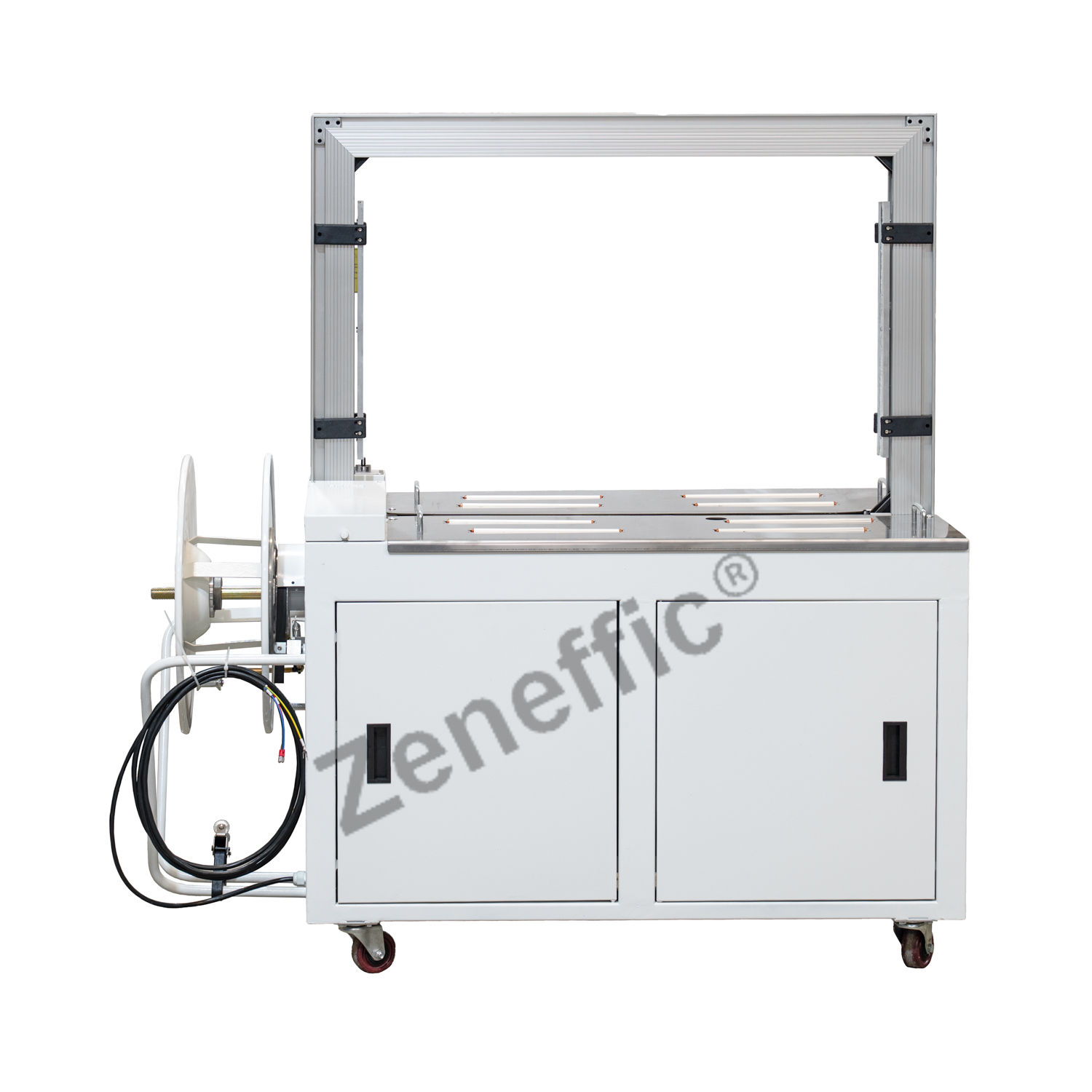

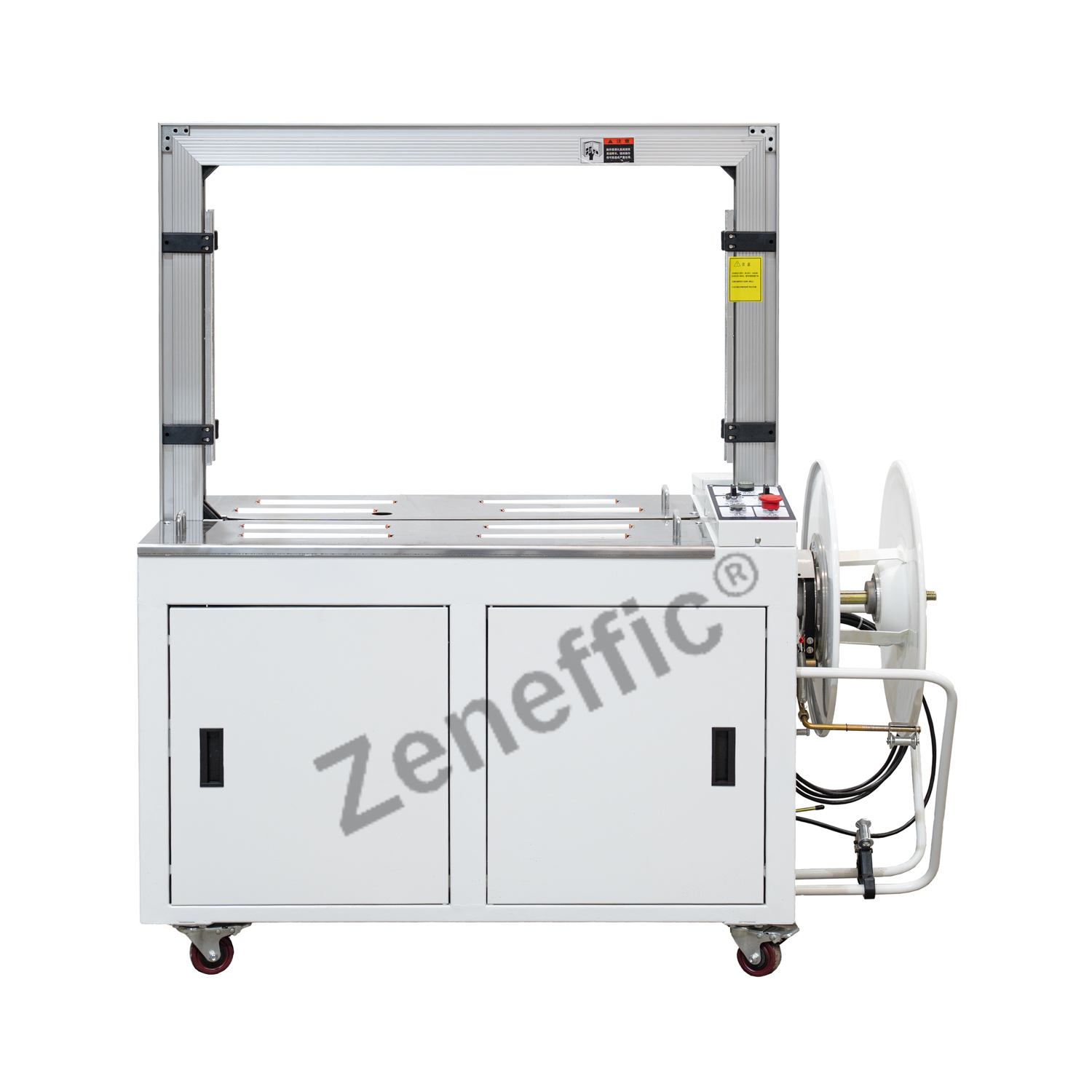

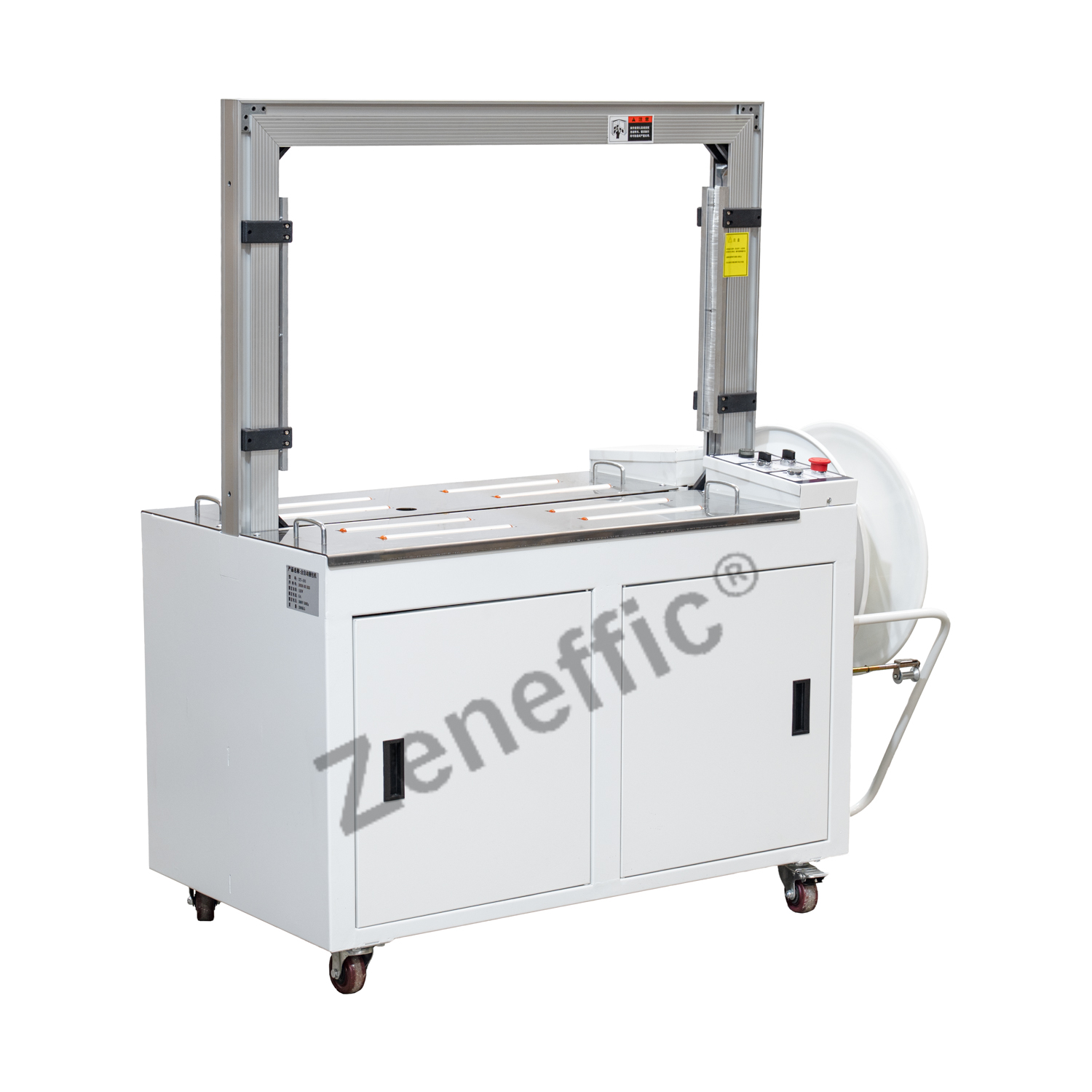

TR-B101 Electronic Automatic Strapping Machine Carton Package Machine
Key Features of TR‑B101 Automatic Strapping Machine
High strapping speed – completes each strap in ≤2.5 seconds .

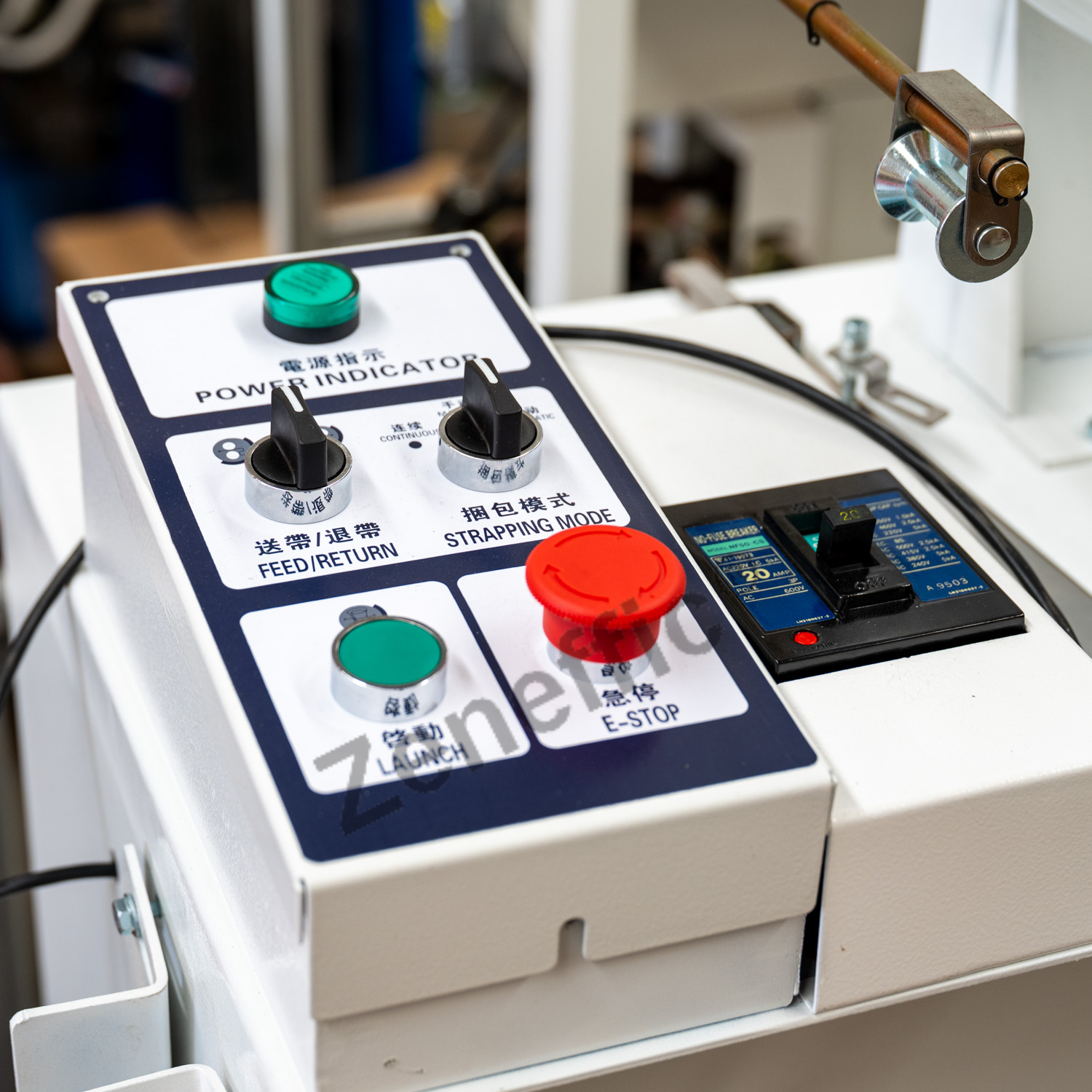

Simple button‑control panel-all tension and temperature adjustments are made via durable keys, with settings memorized and indicated by LED lights.
Rugged frame options – available in blade‑type or one‑piece frame structure, ensuring neat, streak‑free strapping for a professional finish.
Built‑in strapping counter – memorizes the number of straps completed for easy production tracking.

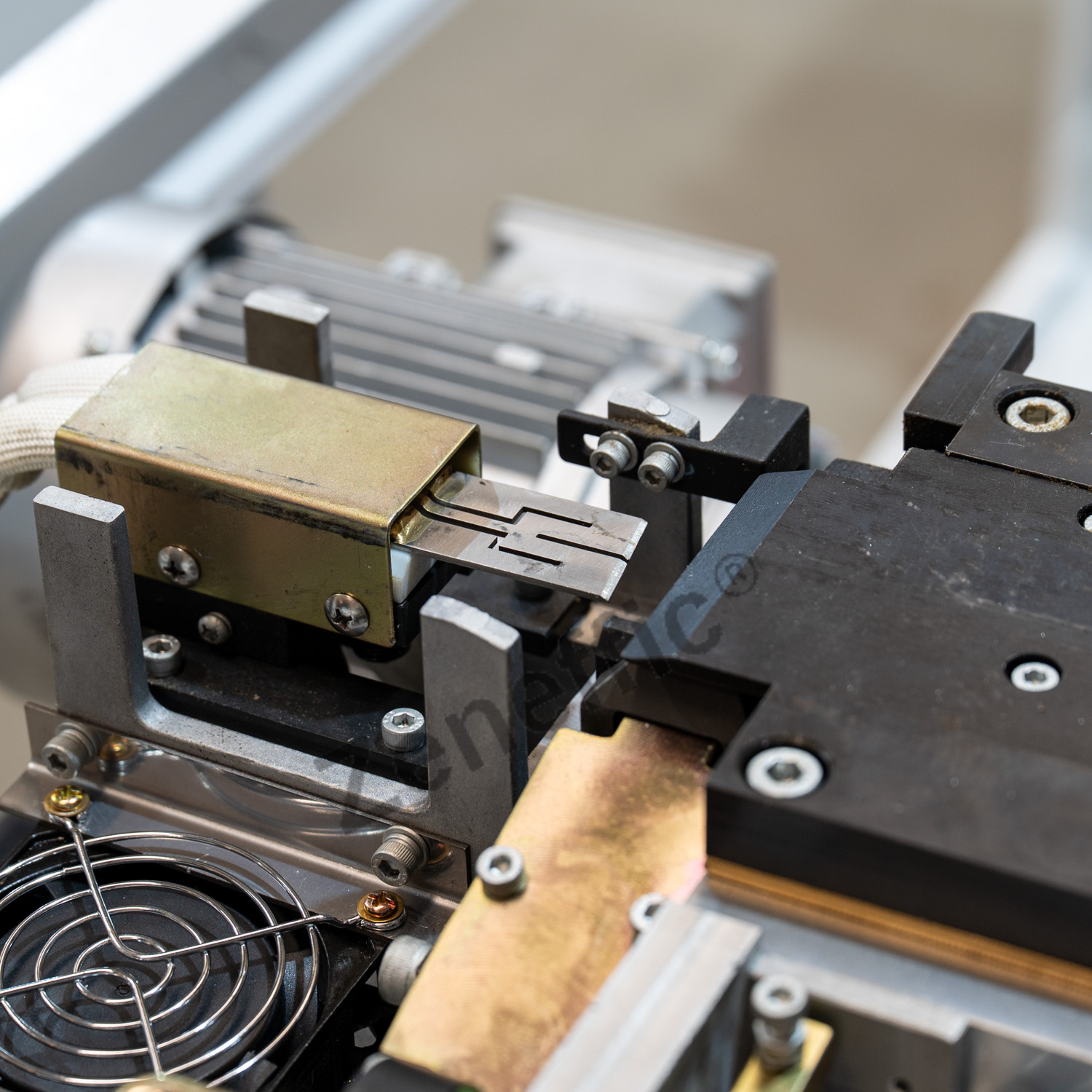

Adjustable constant‑temperature ironing head – maintains optimal sealing temperature for consistent joint strength.
Electronic dual‑tension adjustment – fine‑tune tightening force via buttons; settings are electronically stored for repeatable accuracy.
User‑friendly operation – intuitive controls and clear layout make it easy for any operator.
Automatic belt threading & detection – sensors detect when strap runs out and automatically eject remaining belt from the storage magazine and guide path for quick reloading.
Quieter operation – significantly reduced noise compared to traditional strapping machines.
Sturdy, vibration‑free construction – solid build ensures stable performance even in high‑volume use.
Quick restart after cassette removal – simply press the start button after reloading the cassette; no need to re‑thread the strap.
Telescopic belt feed system – reduces belt resistance, improves feeding and storage efficiency, and extends strap life.
Parameter | Value |
|---|---|
Power Supply | AC220V, 50/60Hz, 0.6W |
Machine Dimensions | 1620mm × 640mm × 1455mm |
Min. Package Size | 80mm (W) × 60mm (H) |
Standard Frame Size | 800mm (W) × 600mm (H) – customizable |
Table Height | 750mm – customizable |
Load Capacity | 80KG |
Strapping Speed | ≤2.5 seconds/strap |
Tightening Force | 0–90KG (adjustable) |
Strap Specs | Width 9–15mm, Thickness 0.55–1.0mm |
Machine Weight | 220KG |
