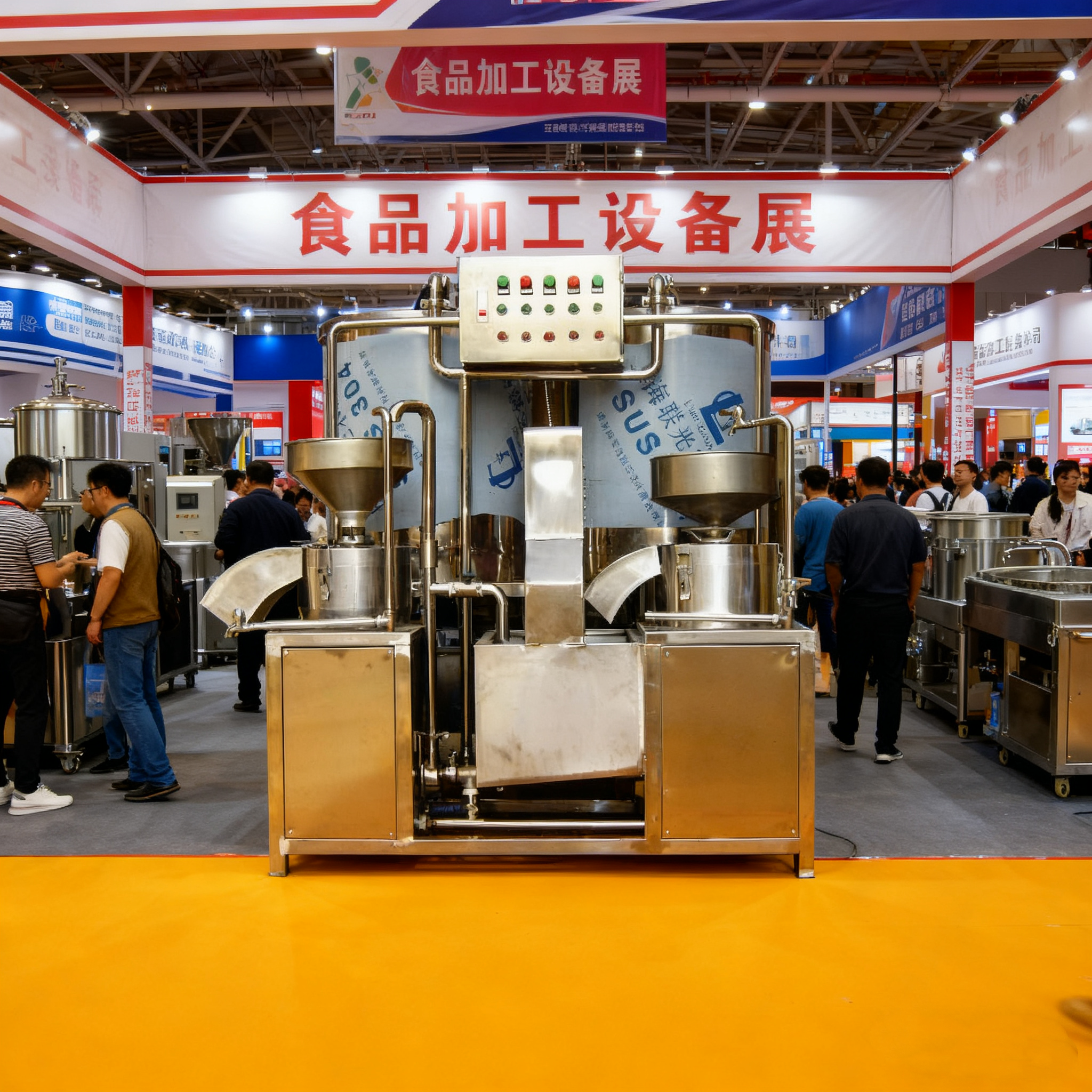

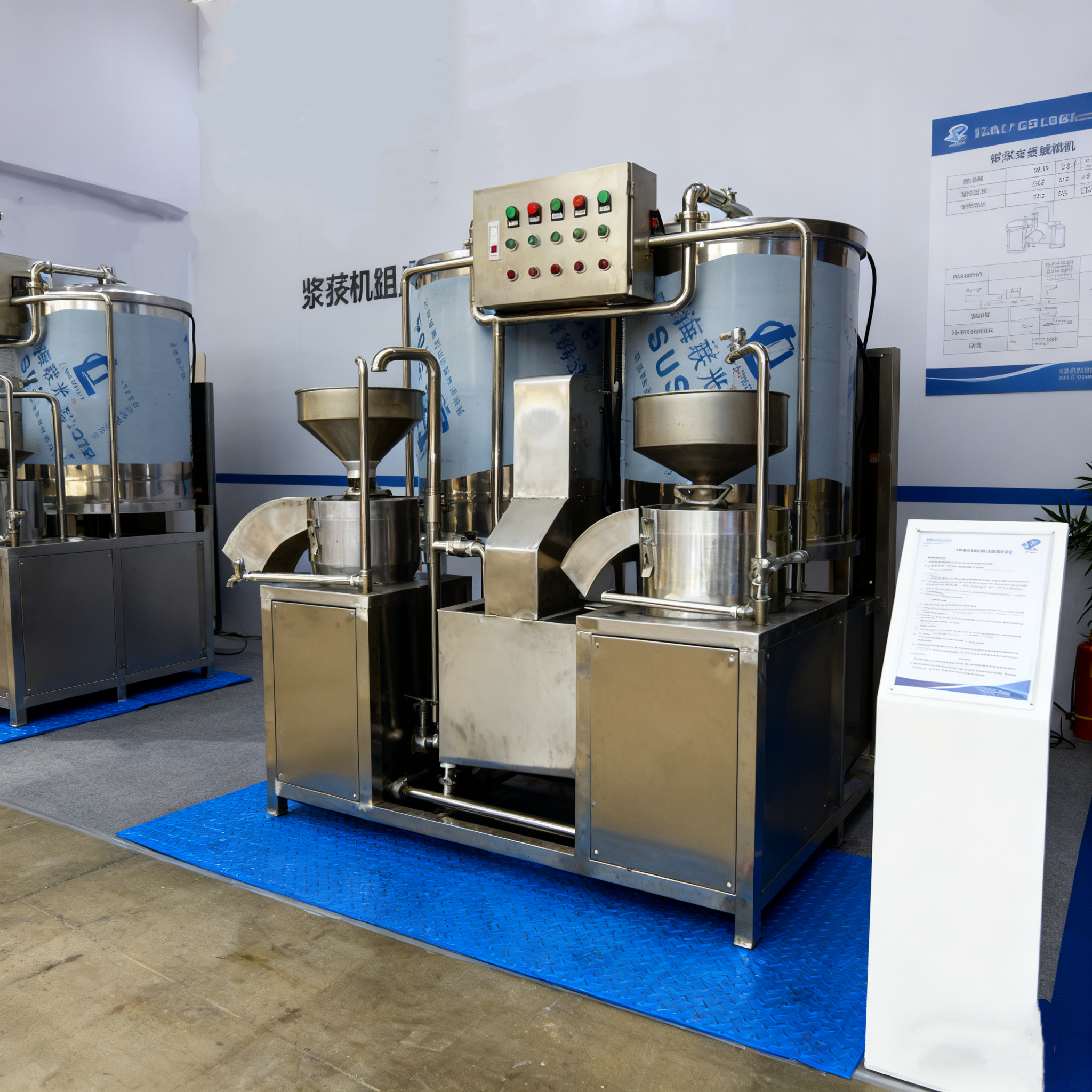

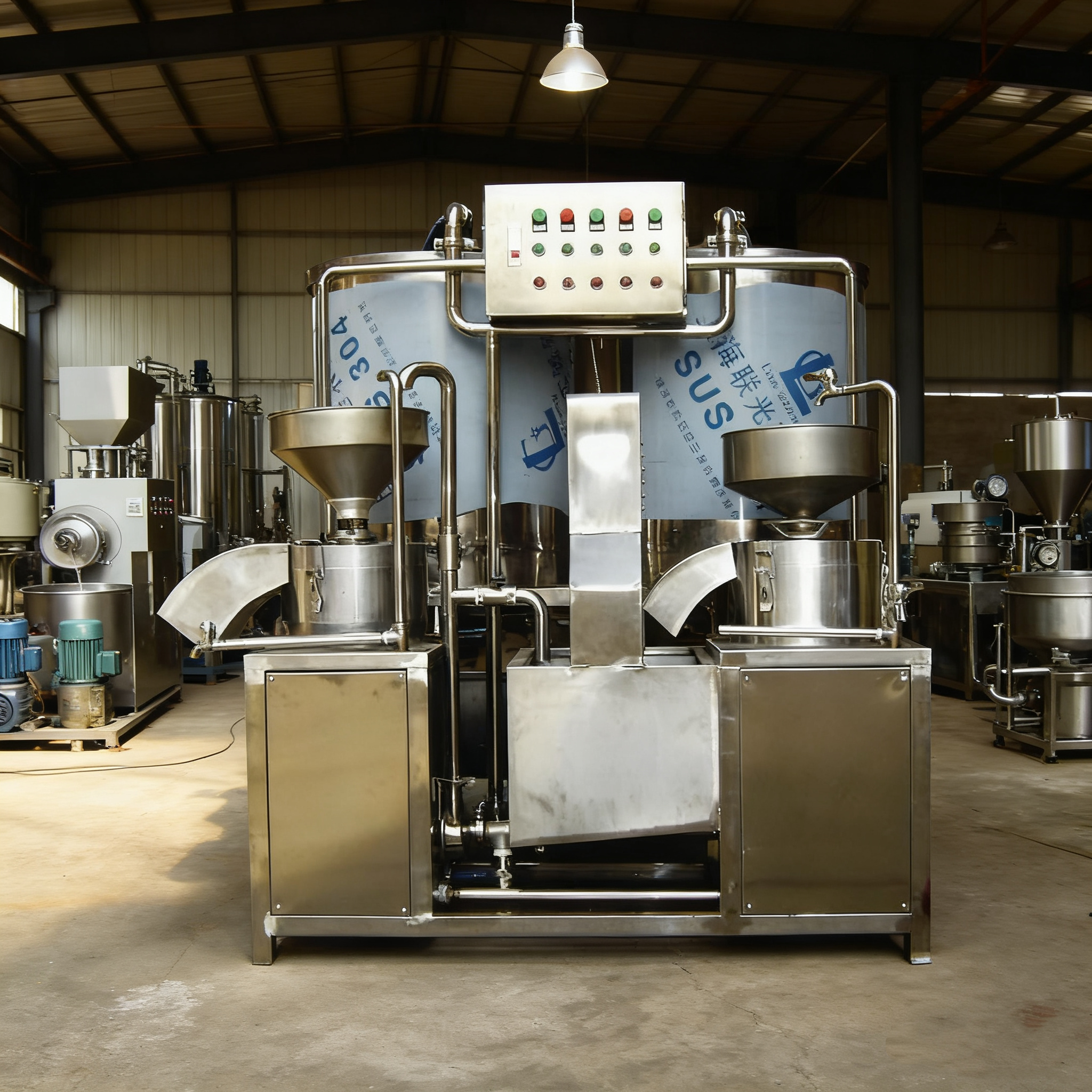

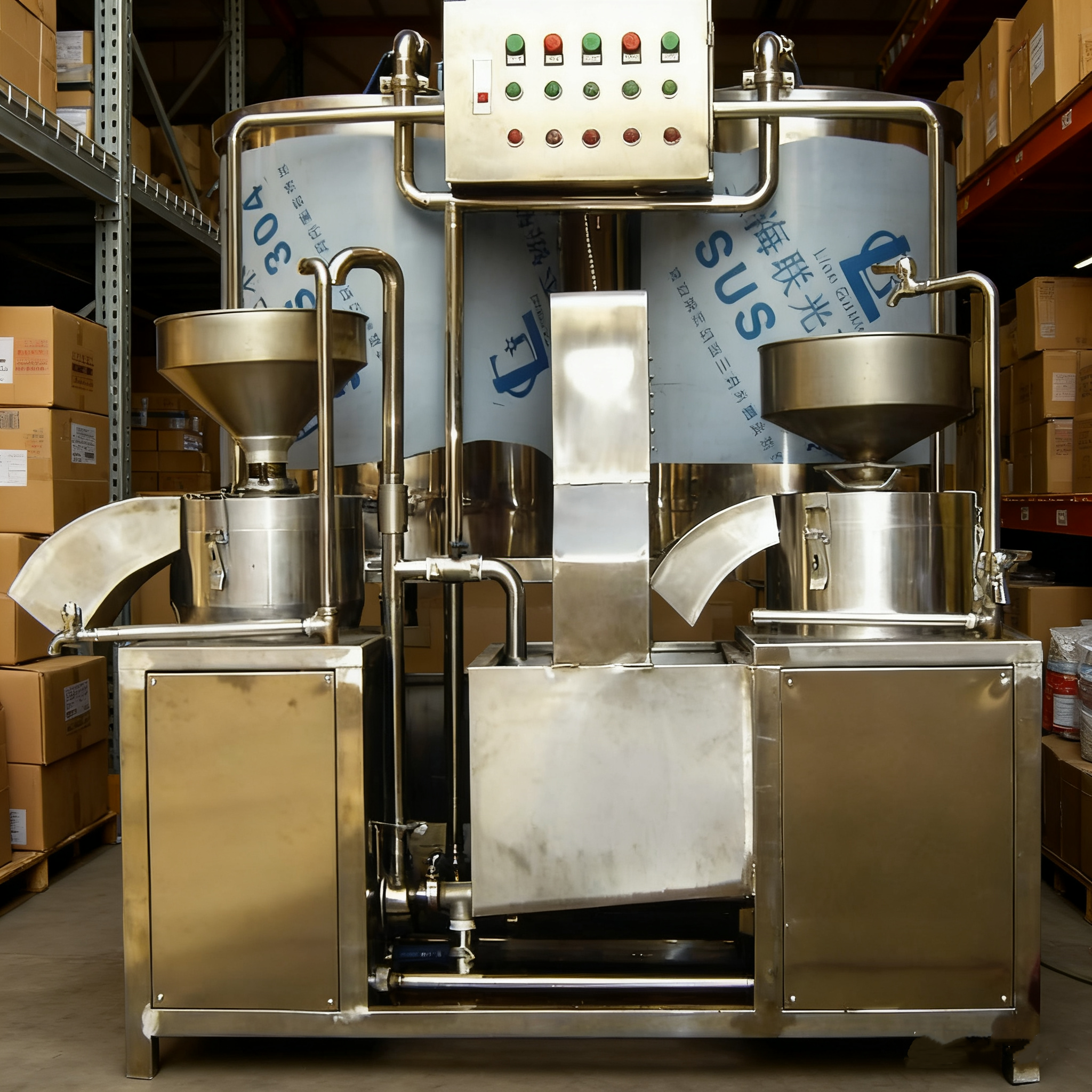

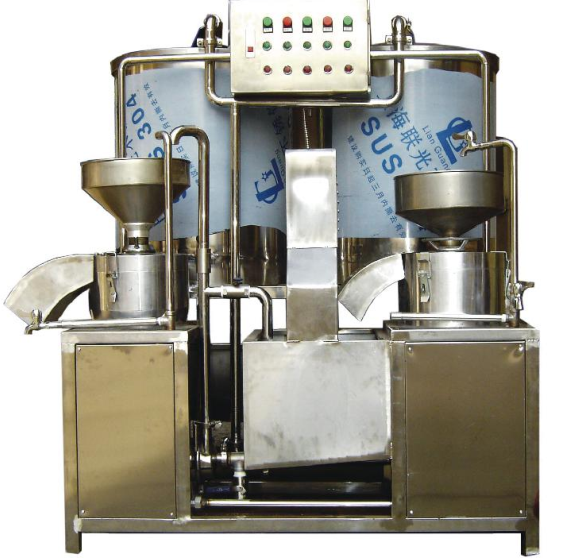

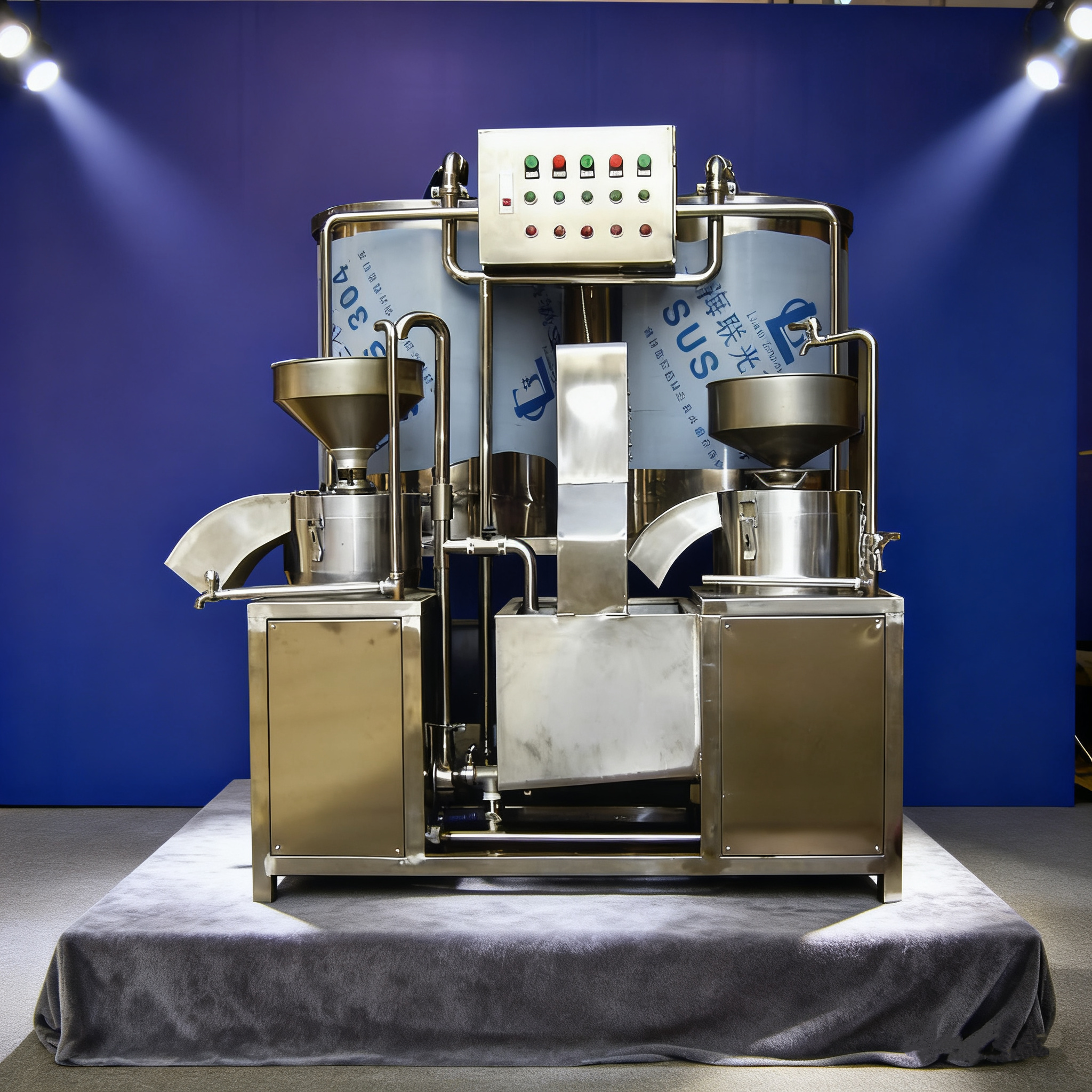

Integrated Grinding And Cooking Unit for Small-Scale Soybean Processing

This integrated grinding and cooking unit is an ideal all-in-one solution for
small-scale bean product processing plants. Constructed entirely from stainless
steel, the system features a secondary grinding process and a dual-tank
circulating cooking system for efficient operation.
Availability:
Quantity:
1

PROFESSIONAL INTEGRATED GRINDING & COOKING UNIT

This commercial soybean processing equipment features advanced dual grinding technology and dual-tank circulating cooking system, engineered to process 0.5-1 ton of dry soybeans per 8-hour shift.

Built with premium stainless steel construction, this compact soy milk production machine combines superior performance with space-efficient design, making it the ideal choice for small to medium-sized producers seeking reliable, automated bean milk making equipment.

Perfect for businesses requiring consistent, high-quality soymilk processing with minimal operational complexity.


KEY FEATURES & TECHNICAL ADVANTAGES

All-in-One Integrated System
Complete grinding, filtering, and cooking process in a single compact unit

Advanced Dual Grinding Technology
Main grinding (4.4kW) + Secondary grinding (1.5kW) for superior texture and yield

Dual-Tank Circulating Cooking System
Ensures even heating and optimal flavor development

TECHNICAL PARAMETERS
Product Name Integrated Grinding and Cooking Unit for Small-Scale Soybean Processing
Key Words Stainless Steel Tofu Machine, Secondary Grinding System,
Product Name Integrated Grinding & Cooking Unit
Main Grinding Power 4.4 kW
Secondary Grinding Power 1.5 kW
Residue Pump Power 1.1 kW
Slurry Pump Power 0.37 kW
Single Tank Capacity 170 L
Overall Dimensions (L*W*H) 1200 × 1000 × 1850 mm
Estimated Capacity (8H) 0.5 - 1 ton (dry soybeans)
Construction Material Stainless Steel
Key Features • All-In-One System
• Secondary Grinding & Dual-Tank Cooking
• Compact Footprint
